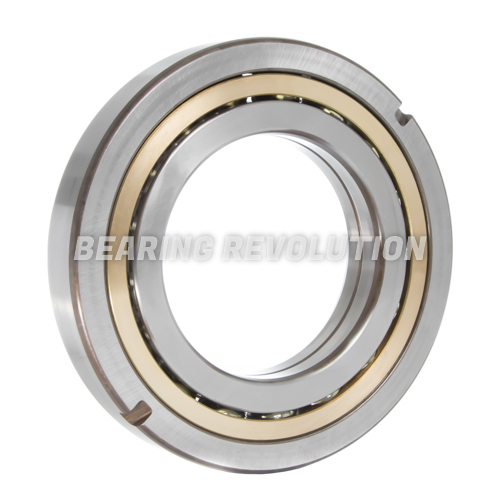

QJ 314 N2 C2L
FOUR-POINT CONTACT BALL BEARING WITH A 70MM BORE - BRASS CAGE - PREMIUM RANGE
Medium series four point angular contact ball bearing with a split inner race, axial internal clearance in lower half of C2 range and locating slots from our Premium range. 70mm ID, 150mm OD and 35mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for QJ 314 N2 C2L | |
| Reference | QJ 314 N2 C2L |
| Brand | Premium |
| Inside Diameter | 70mm |
| Outside Diameter | 150mm |
| Width | 35mm |
| Clearance | C2 |
| Weight (KG) | 3.5 |
Schematic for QJ 314 N2 C2L | |
| B | 35mm |
| d | 70mm |
| D | 150mm |
