SBF 205 - BEARING UNIT

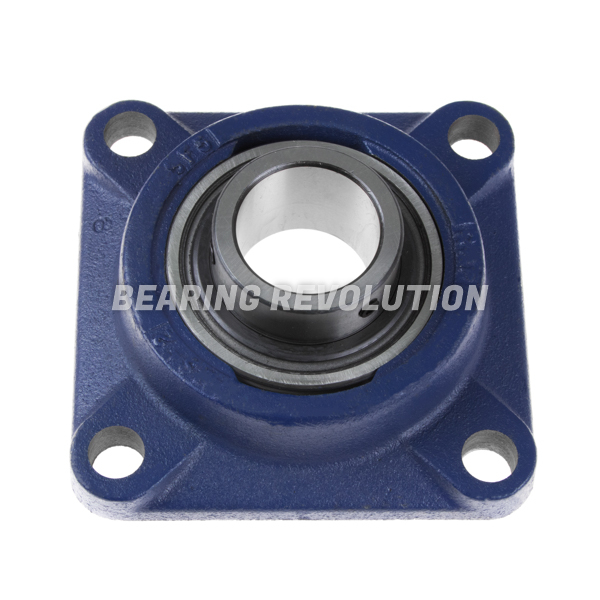

Cast Iron Four Bolt Square Flanged Unit complete with flat back bearing insert from our Premium Range. Also known as SBF 205.
Also known as SF 25 A, SBF205, SF25A
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£58.85 (£70.62 inc VAT)
- 5 +£55.91 (£67.09 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SBF 205 - Bearing Unit | |
| Reference | SF 25 A |
| Brand | Premium |
| Inside Diameter | 25mm |
| Weight (KG) | 1 |

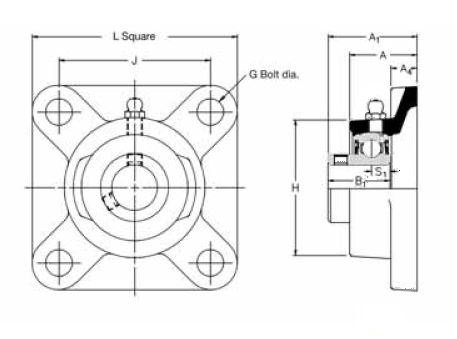

Schematic for SBF 205 - Bearing Unit | |
| A | 28.6mm |
| G | 10mm |
| J | 70mm |
| KG | 1 |
| L | 95.3mm |
