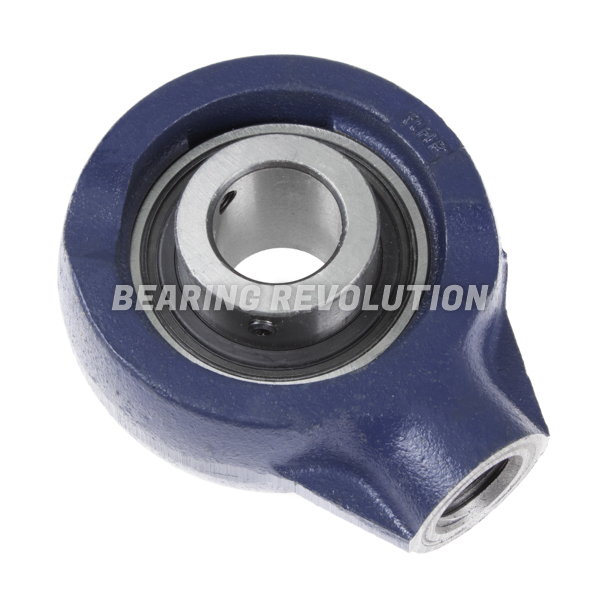

Please note photos are for illustration purposes only

SCHB 1.7/16, 'PREMIUM' HANGER BEARING UNIT WITH A 1.7/16 INCH BORE.

Name: SCHB 1.7/16, 'Premium' Hanger Bearing Unit with a 1.7/16 inch bore.
Brand: Premium
Price: 150.78 GBP
Availability: InStock

BR Stock No. P-SCHB 1.7/16 | Brand: Premium | Mfr. Part No. SCHB 1.7/16

Cast Iron Hanger Bearing Unit with BSP thread complete with full width bearing insert, from our Premium Range.

Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).

UnitsPer unit
1 - 4£125.65 (£150.78 inc VAT)
5 +£119.37 (£143.24 inc VAT)
Bulk Order PricesENQUIRE

SCHB 1.7/16, 'Premium' Hanger Bearing Unit with a 1.7/16 inch bore. Schematic

Specifications for SCHB 1.7/16, 'Premium' Hanger Bearing Unit with a 1.7/16 inch bore.
Reference	SCHB 1.7/16
Brand	Premium
Inside Diameter	1.7/16"
Weight (KG)	1.6

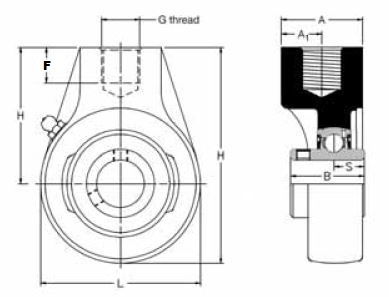

Schematic for SCHB 1.7/16, 'Premium' Hanger Bearing Unit with a 1.7/16 inch bore.
A	39mm
A1	27.79mm
B	49.23mm
F	19mm
G	.3/4" BSP
H	127.5mm
H1	73mm
KG	1.6
L	107mm
s	19.1mm
