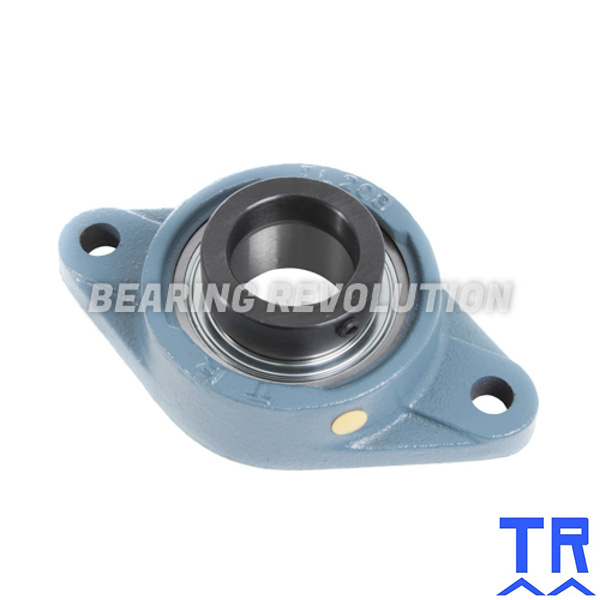

SFT .3/4 EC ( SAFL 204 12 ) - OVAL FLANGE UNIT WITH A 3/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£29.26 (£35.11 inc VAT)
- 5 - 9£27.79 (£33.35 inc VAT)
- 10 +£26.34 (£31.61 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT .3/4 EC ( SAFL 204 12 ) - Oval Flange Unit with a 3/4 inch bore - TR Brand | |
| Reference | SFT .3/4 EC |
| Brand | TR |
| Inside Diameter | .3/4" |
| Bolt | M10 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.42 |

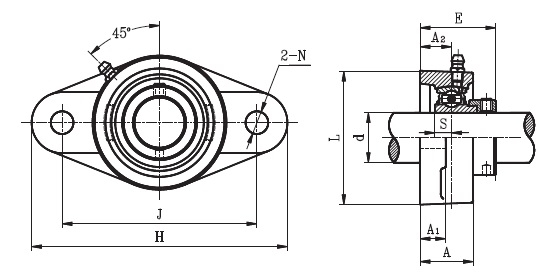

Schematic for SFT .3/4 EC ( SAFL 204 12 ) - Oval Flange Unit with a 3/4 inch bore - TR Brand | |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 15mm |
| E | 38.4mm |
| H | 113mm |
| J | 90mm |
| KG | 0.42 |
| L | 60mm |
| N | 11.5mm |
| S | 7.5mm |
