Please note photos are for illustration purposes only

SFT 1 EC ( SAFL 205 16 ) - OVAL FLANGE UNIT WITH A 1 INCH BORE - TR BRAND

BR Stock No. B-SFT 1 EC | Brand: TR | Mfr. Part No. SFT 1 EC

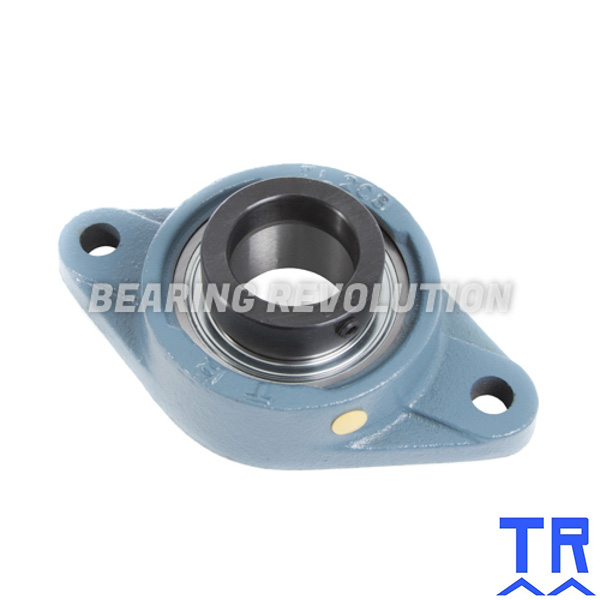

Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert with Eccentric collar lock from our TR range.

Specifications for SFT 1 EC ( SAFL 205 16 ) - Oval Flange Unit with a 1 inch bore - TR Brand
Reference	SFT 1 EC
Brand	TR
Inside Diameter	1"
Bolt	M10
Type	Eccentric Collar Lock
Weight (KG)	0.6

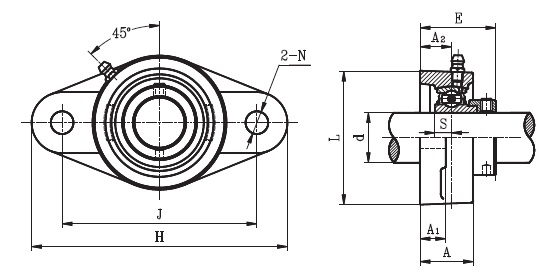

Schematic for SFT 1 EC ( SAFL 205 16 ) - Oval Flange Unit with a 1 inch bore - TR Brand
A	27mm
A1	13mm
A2	16mm
E	39.4mm
H	130mm
J	99mm
KG	0.6
L	68mm
N	11.5mm
S	7.5mm
