SFT 1.1/2 EC ( SAFL 208 24 ) - OVAL FLANGE UNIT WITH A 1.1/2 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£54.99 (£65.99 inc VAT)
- 5 - 9£52.24 (£62.69 inc VAT)
- 10 +£49.49 (£59.39 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 1.1/2 EC ( SAFL 208 24 ) - Oval Flange Unit with a 1.1/2 inch bore - TR Brand | |
| Reference | SFT 1.1/2 EC |
| Brand | TR |
| Inside Diameter | 1.1/2" |
| Bolt | M12 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.53 |

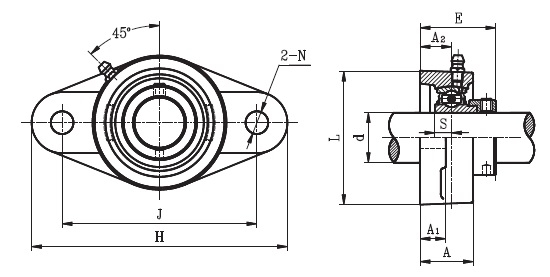

Schematic for SFT 1.1/2 EC ( SAFL 208 24 ) - Oval Flange Unit with a 1.1/2 inch bore - TR Brand | |
| A | 36mm |
| A1 | 14mm |
| A2 | 21mm |
| E | 53.7mm |
| H | 175mm |
| J | 144mm |
| KG | 1.53 |
| L | 100mm |
| N | 14mm |
| S | 11mm |
