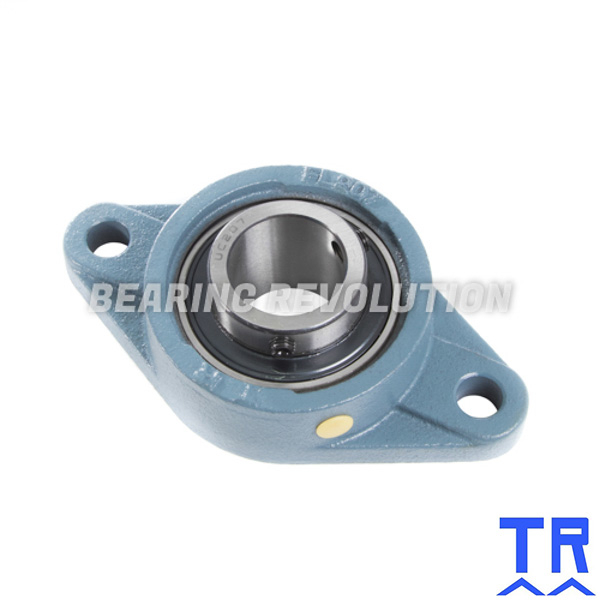

SFT 1.3/4 ( UCFL 209 28 ) - OVAL FLANGE UNIT WITH A 1.3/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£60.11 (£72.13 inc VAT)
- 5 - 9£57.10 (£68.52 inc VAT)
- 10 +£54.11 (£64.93 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 1.3/4 ( UCFL 209 28 ) - Oval Flange Unit with a 1.3/4 inch bore - TR Brand | |
| Reference | SFT 1.3/4 |
| Brand | TR |
| Inside Diameter | 1.3/4" |
| Bolt | M16 |
| Weight (KG) | 1.87 |

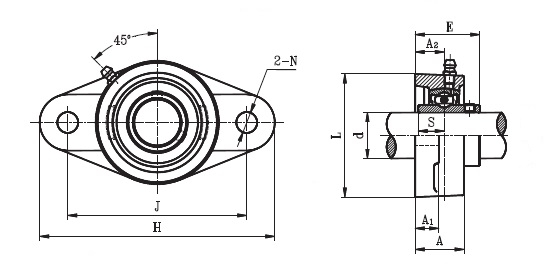

Schematic for SFT 1.3/4 ( UCFL 209 28 ) - Oval Flange Unit with a 1.3/4 inch bore - TR Brand | |
| A | 38mm |
| A1 | 16mm |
| A2 | 22mm |
| A4 | 57mm |
| E | 52.2mm |
| H | 188mm |
| J | 148mm |
| KG | 1.87 |
| L | 108mm |
| N | 18mm |
| S | 19mm |
