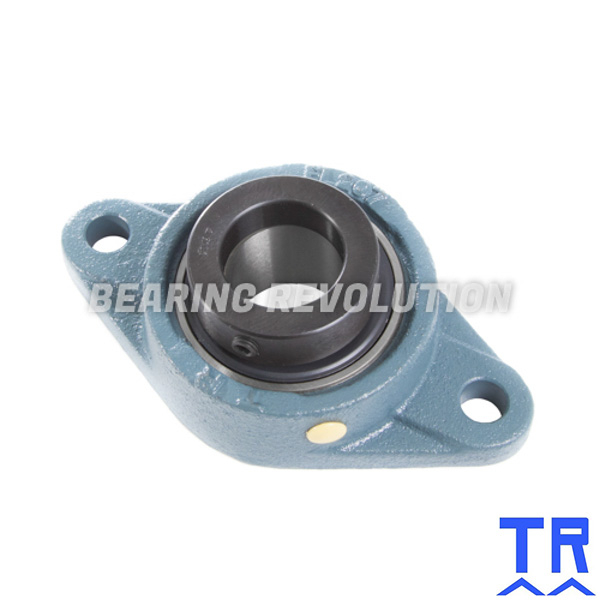

SFT 1.3/8 DEC ( NAFL 207 22 ) - OVAL FLANGE UNIT WITH A 1.3/8 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£54.51 (£65.41 inc VAT)
- 5 - 9£51.78 (£62.14 inc VAT)
- 10 +£49.07 (£58.88 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 1.3/8 DEC ( NAFL 207 22 ) - Oval Flange Unit with a 1.3/8 inch bore - TR Brand | |
| Reference | SFT 1.3/8 DEC |
| Brand | TR |
| Inside Diameter | 1.3/8" |
| Bolt | M12 |
| F Min | 50mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.28 |

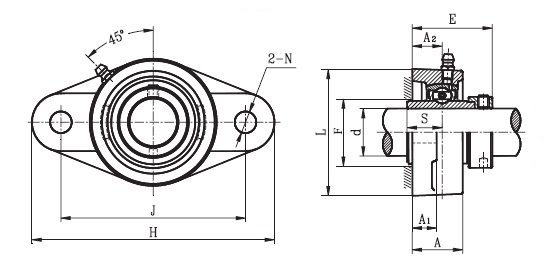

Schematic for SFT 1.3/8 DEC ( NAFL 207 22 ) - Oval Flange Unit with a 1.3/8 inch bore - TR Brand | |
| A | 34mm |
| A1 | 14mm |
| A2 | 19mm |
| E | 51.3mm |
| H | 161mm |
| J | 130mm |
| KG | 1.28 |
| L | 90mm |
| N | 14mm |
| S | 18.8mm |
