SNP 20 EC, 'PREMIUM' TAPPED BASE PILLOW BLOCK WITH A 20MM BORE.
Cast Iron Tapped Base Pillow Block complete with flat back bearing insert and eccentric collar lock from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£61.43 (£73.72 inc VAT)
- 5 +£58.35 (£70.02 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SNP 20 EC, 'Premium' Tapped Base Pillow Block with a 20mm bore. | |
| Reference | SNP 20 EC |
| Brand | Premium |
| Inside Diameter | 20mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.9 |

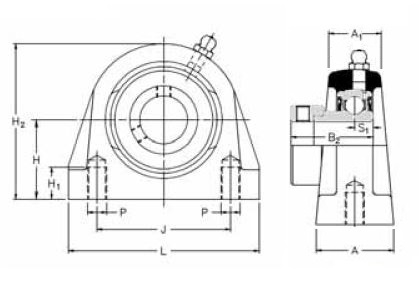

Schematic for SNP 20 EC, 'Premium' Tapped Base Pillow Block with a 20mm bore. | |
| A | 32mm |
| H | 33.3mm |
| H2 | 65.8mm |
| J | 50.8mm |
| KG | 0.9 |
| L | 65mm |
