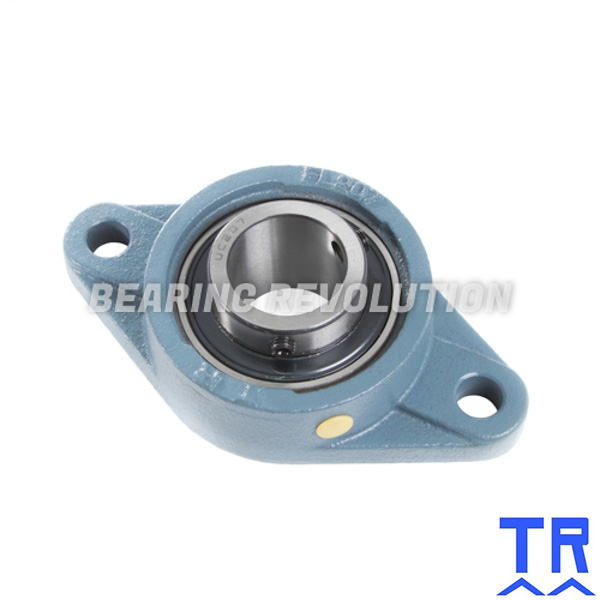

SFT .15/16 ( UCFL 205 15 ) - OVAL FLANGE UNIT WITH A .15/16 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£33.81 (£40.57 inc VAT)
- 5 - 9£32.11 (£38.53 inc VAT)
- 10 +£30.43 (£36.52 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT .15/16 ( UCFL 205 15 ) - Oval Flange Unit with a .15/16 inch bore - TR Brand | |
| Reference | SFT .15/16 |
| Brand | TR |
| Inside Diameter | .15/16" |
| Bolt | M10 |
| Weight (KG) | 0.61 |

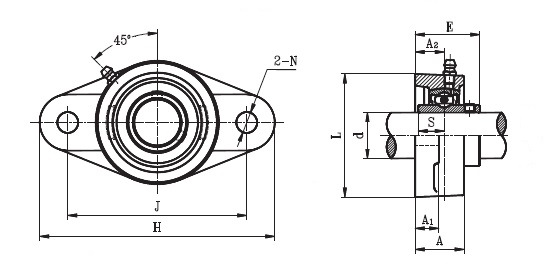

Schematic for SFT .15/16 ( UCFL 205 15 ) - Oval Flange Unit with a .15/16 inch bore - TR Brand | |
| A | 27mm |
| A1 | 13mm |
| A2 | 16mm |
| A4 | 40mm |
| E | 35.7mm |
| H | 130mm |
| J | 99mm |
| KG | 0.61 |
| L | 68mm |
| N | 11.5mm |
| S | 14.3mm |
