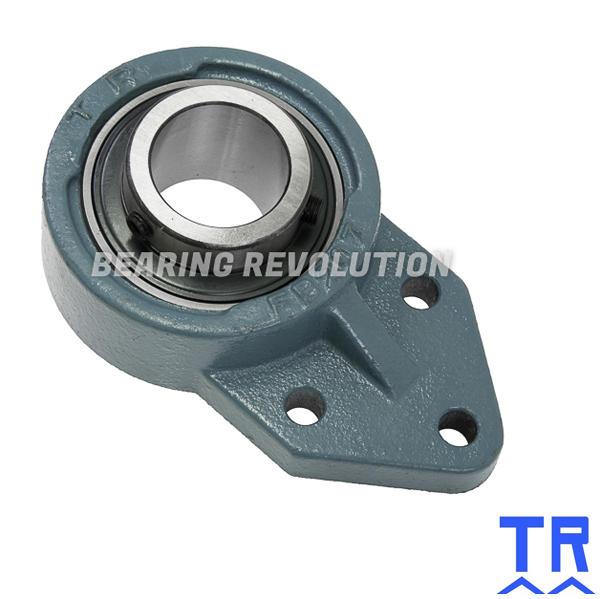

UCFB 208
FLANGED BRACKET UNIT WITH A 40MM BORE - TR BRAND
Cast Iron Flanged Bracket Unit complete with full width bearing insert from our TR Range.
Also known as UCFB208
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£79.03 (£94.84 inc VAT)
- 5 - 9£75.08 (£90.10 inc VAT)
- 10 +£71.12 (£85.34 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFB 208 | |
| Reference | UCFB 208 |
| Brand | Budget |
| Inside Diameter | 40mm |
| Bolt | M10 |
| Weight (KG) | 1.71 |

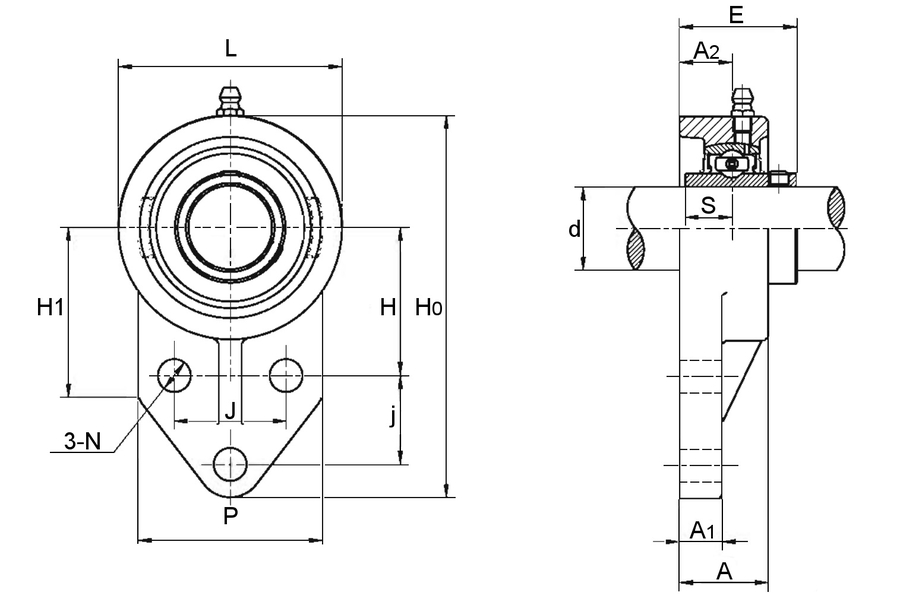

Schematic for UCFB 208 | |
| A | 35mm |
| A1 | 17mm |
| A2 | 21mm |
| d | 40mm |
| E | 51.2mm |
| H | 60mm |
| H0 | 164mm |
| H1 | 72mm |
| j | 41mm |
| J | 50mm |
| KG | 19 |
| L | 100mm |
| N | 12mm |
| P | 78mm |
| S | 19mm |
