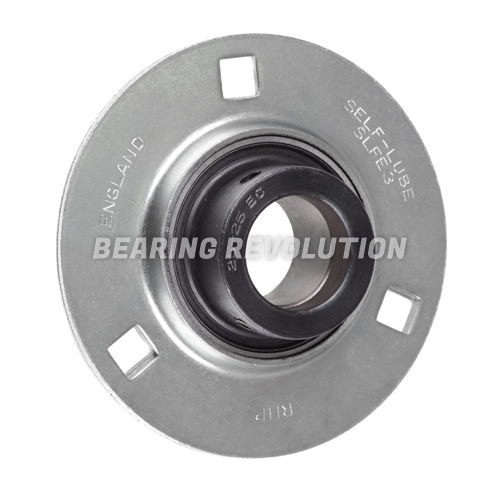

SLFE 30 EC, 'PREMIUM' ROUND HOUSING FLANGE UNIT WITH A 30MM BORE.
Pressed Steel and Zinc Plated Three Bolt Round Housing Flange Unit complete with flat back bearing insert and eccentric collar lock from our Premium Range. Also known as SAPF 206.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£40.78 (£48.94 inc VAT)
- 5 +£38.73 (£46.48 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFE 30 EC, 'Premium' Round Housing Flange Unit with a 30mm bore. | |
| Reference | SLFE 30 EC |
| Brand | Premium |
| Inside Diameter | 30mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.7 |

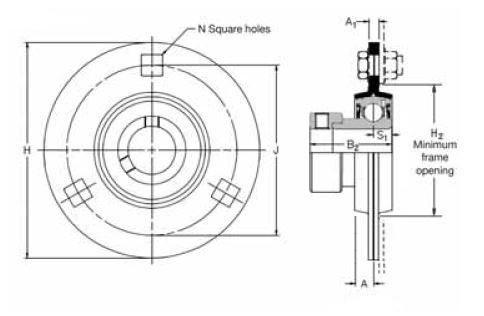

Schematic for SLFE 30 EC, 'Premium' Round Housing Flange Unit with a 30mm bore. | |
| A | 9mm |
| A1 | 5mm |
| B2 | 35.73mm |
| H | 112.7mm |
| H2 | 71mm |
| J | 90.5mm |
| KG | 0.7 |
| N | 10.5mm |
| s1 | 9.03mm |
