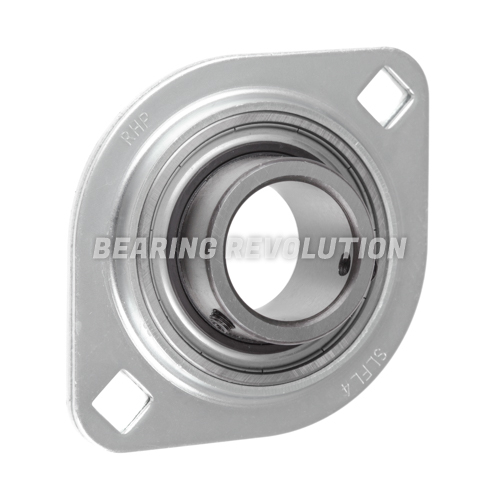

SLFL 12 A, 'PREMIUM' OVAL FLANGE UNIT WITH A 12MM BORE.
Pressed Steel and Zinc Plated Two Bolt Oval Flange Unit complete with flat back bearing insert from our Premium Range. Also known as SBPFL 201.
Also known as SBPFL 201
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£28.30 (£33.96 inc VAT)
- 5 +£26.88 (£32.26 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFL 12 A, 'Premium' Oval Flange Unit with a 12mm bore. | |
| Reference | SLFL 12 A |
| Brand | Premium |
| Inside Diameter | 12mm |
| Weight (KG) | 0.2 |

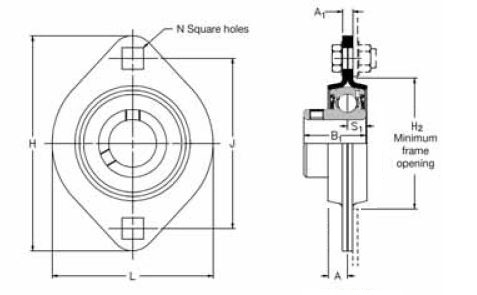

Schematic for SLFL 12 A, 'Premium' Oval Flange Unit with a 12mm bore. | |
| A | 6.7mm |
| A1 | 4mm |
| B | 27.38mm |
| H | 81mm |
| H2 | 49mm |
| J | 63.5mm |
| KG | 0.2 |
| L | 58.7mm |
| N | 7.1mm |
| s1 | 6.55mm |
