SLFL .3/4 A ( SBPFL 204 12 ) - OVAL FLANGE UNIT WITH A .3/4 INCH BORE - TR BRAND
Pressed Steel Two Bolt Oval Flange Unit complete with flat back bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£13.91 (£16.69 inc VAT)
- 5 - 9£13.21 (£15.85 inc VAT)
- 10 +£12.53 (£15.04 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFL .3/4 A ( SBPFL 204 12 ) - Oval Flange Unit with a .3/4 inch bore - TR Brand | |
| Reference | SLFL .3/4 A |
| Brand | TR |
| Inside Diameter | .3/4" |
| Bolt | M8 |
| Bolt1 | .5/16 |
| Weight (KG) | 0.22 |

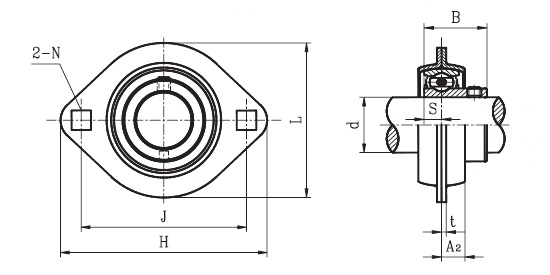

Schematic for SLFL .3/4 A ( SBPFL 204 12 ) - Oval Flange Unit with a .3/4 inch bore - TR Brand | |
| A2 | 8mm |
| B | 25mm |
| H | 90mm |
| J | 71.5mm |
| KG | 0.22 |
| L | 67mm |
| N | 9mm |
| S | 7mm |
| t | 2mm |
