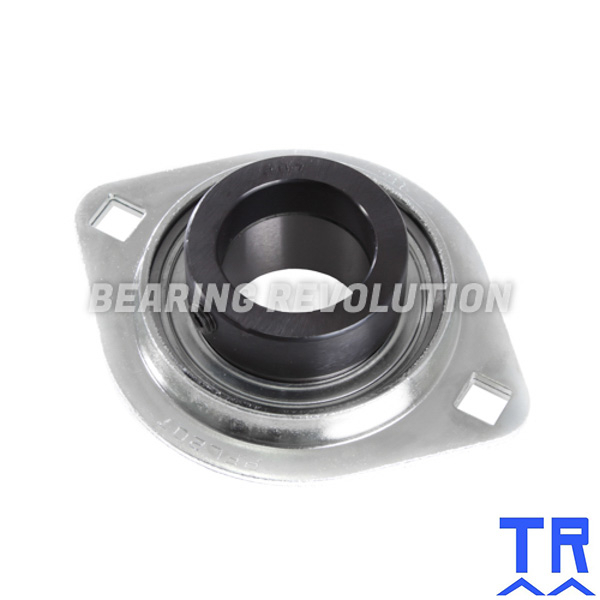

SLFL 17 EC ( SAPFL 203 ) - OVAL FLANGE UNIT WITH A 17MM BORE - TR BRAND
Pressed Steel Two Bolt Oval Flange Unit complete with flat back bearing insert and eccentric collar lock from our TR Range.
- UnitsPer unit
- 1 - 4£13.28 (£15.94 inc VAT)
- 5 - 9£12.62 (£15.14 inc VAT)
- 10 +£11.95 (£14.34 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFL 17 EC ( SAPFL 203 ) - Oval Flange Unit with a 17mm bore - TR Brand | |
| Reference | SLFL 17 EC |
| Brand | TR |
| Inside Diameter | 17mm |
| Bolt | M6 |
| Bolt1 | .1/4 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.17 |

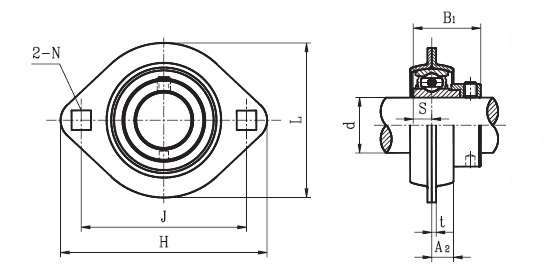

Schematic for SLFL 17 EC ( SAPFL 203 ) - Oval Flange Unit with a 17mm bore - TR Brand | |
| A2 | 7mm |
| B | 28.6mm |
| H | 81mm |
| J | 63.5mm |
| KG | 0.17 |
| L | 59mm |
| N | 7.5mm |
| S | 6.5mm |
| t | 2mm |
