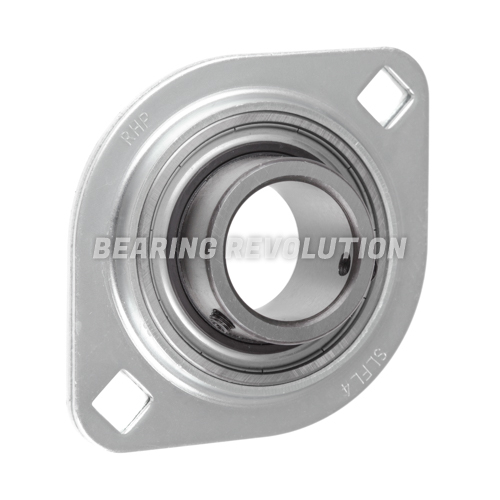

SLFL 20 A, 'PREMIUM' OVAL FLANGE UNIT WITH A 20MM BORE.
Pressed Steel and Zinc Plated Two Bolt Oval Flange Unit complete with flat back bearing insert from our Premium Range. Also known as SBPFL 204.
Also known as SBPFL 204
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£28.95 (£34.74 inc VAT)
- 5 +£27.49 (£32.99 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFL 20 A, 'Premium' Oval Flange Unit with a 20mm bore. | |
| Reference | SLFL 20 A |
| Brand | Premium |
| Inside Diameter | 20mm |
| Weight (KG) | 0.3 |

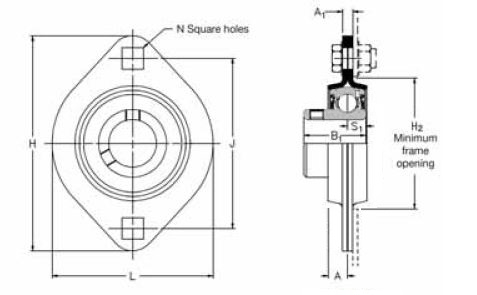

Schematic for SLFL 20 A, 'Premium' Oval Flange Unit with a 20mm bore. | |
| A | 7.7mm |
| A1 | 4mm |
| B1 | 25.77mm |
| H | 90.5mm |
| H2 | 55mm |
| J | 71.5mm |
| KG | 0.3 |
| L | 66.7mm |
| N | 8.7mm |
| s1 | 7.56mm |
