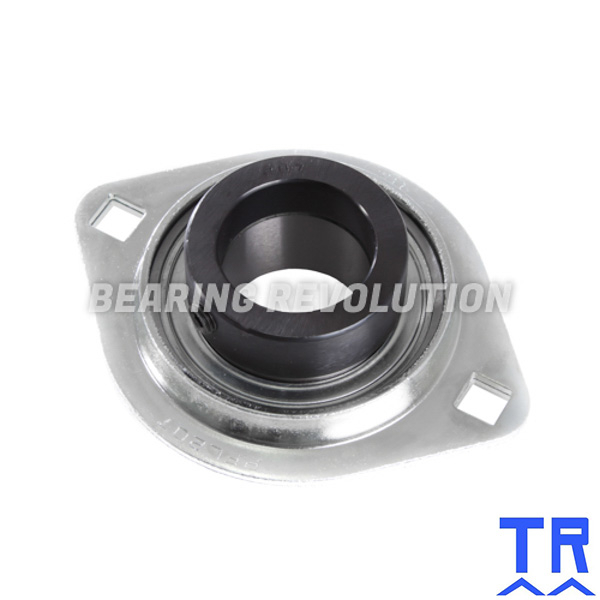

SLFL 20 EC ( SAPFL 204 ) - OVAL FLANGE UNIT WITH A 20MM BORE - TR BRAND
Pressed Steel Two Bolt Oval Flange Unit complete with flat back bearing insert and eccentric collar lock from our TR Range.
- UnitsPer unit
- 1 - 4£14.60 (£17.52 inc VAT)
- 5 - 9£13.86 (£16.63 inc VAT)
- 10 +£13.14 (£15.77 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFL 20 EC ( SAPFL 204 ) - Oval Flange Unit with a 20mm bore - TR Brand | |
| Reference | SLFL 20 EC |
| Brand | TR |
| Inside Diameter | 20mm |
| Bolt | M8 |
| Bolt1 | .5/16 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.25 |

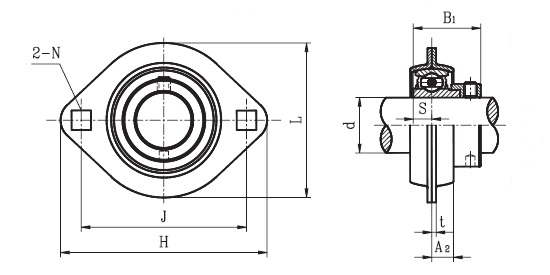

Schematic for SLFL 20 EC ( SAPFL 204 ) - Oval Flange Unit with a 20mm bore - TR Brand | |
| A2 | 8mm |
| B | 30.9mm |
| H | 90mm |
| J | 71.5mm |
| KG | 0.25 |
| L | 67mm |
| N | 9mm |
| S | 7.5mm |
| t | 2mm |
