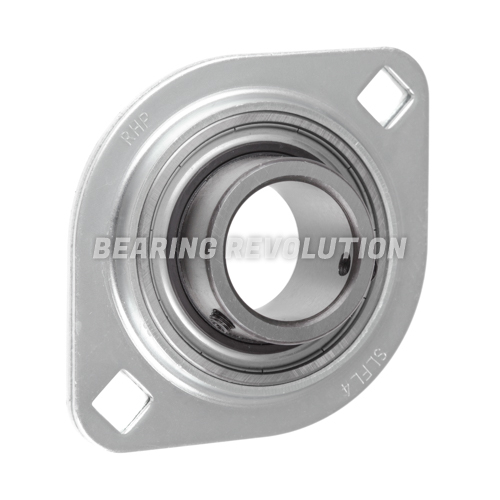

SLFL 30, 'PREMIUM' OVAL FLANGE UNIT WITH A 30MM BORE.
Pressed Steel and Zinc Plated Two Bolt Oval Flange Unit complete with full width bearing insert from our Premium Range. Also known as UCPFL 206.
Also known as UCPFL 206
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£38.50 (£46.20 inc VAT)
- 5 +£36.58 (£43.90 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFL 30, 'Premium' Oval Flange Unit with a 30mm bore. | |
| Reference | SLFL 30 |
| Brand | Premium |
| Inside Diameter | 30mm |
| Weight (KG) | 0.5 |

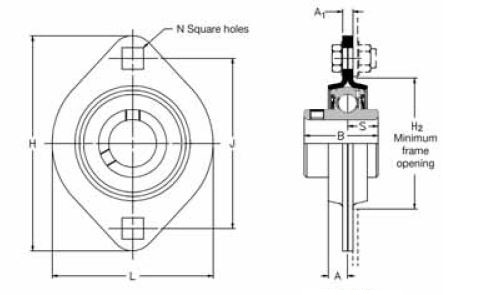

Schematic for SLFL 30, 'Premium' Oval Flange Unit with a 30mm bore. | |
| A | 9mm |
| A1 | 5mm |
| B | 38.1mm |
| H | 112.7mm |
| H2 | 71mm |
| J | 90.5mm |
| KG | 0.5 |
| L | 84.1mm |
| N | 10.5mm |
| s | 15.93mm |
