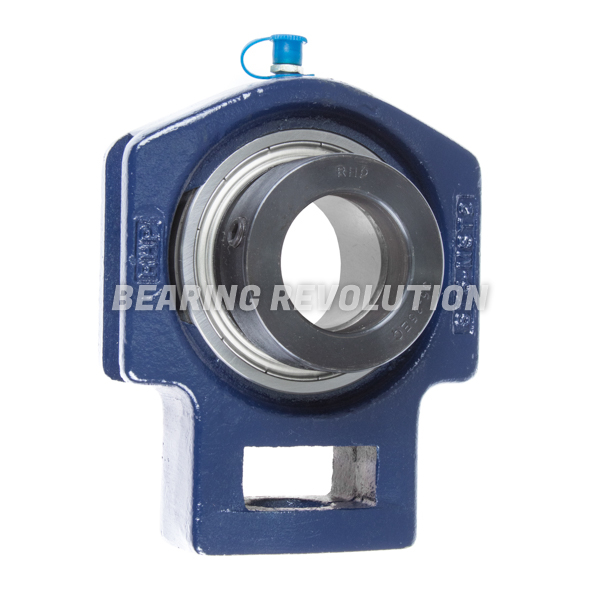

Please note photos are for illustration purposes only

ST 1.1/2 EC, 'PREMIUM' TAKE UP UNIT WITH A 1.1/2 INCH BORE.

Name: ST 1.1/2 EC, &#39;Premium&#39; Take Up Unit with a 1.1/2 inch bore.
Brand: Premium
Price: 153.43 GBP
Availability: InStock

BR Stock No. P-ST 1.1/2 EC | Brand: Premium | Mfr. Part No. ST 1.1/2 EC

Cast Iron Take Up Unit complete with flat back bearing insert and eccentric collar lock from our Premium Range.

Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).

UnitsPer unit
1 - 4£127.86 (£153.43 inc VAT)
5 +£121.47 (£145.76 inc VAT)
Bulk Order PricesENQUIRE

ST 1.1/2 EC, 'Premium' Take Up Unit with a 1.1/2 inch bore. Schematic

Specifications for ST 1.1/2 EC, 'Premium' Take Up Unit with a 1.1/2 inch bore.
Reference	ST 1.1/2 EC
Brand	Premium
Inside Diameter	1.1/2"
Type	Eccentric Collar Lock
Weight (KG)	2.7

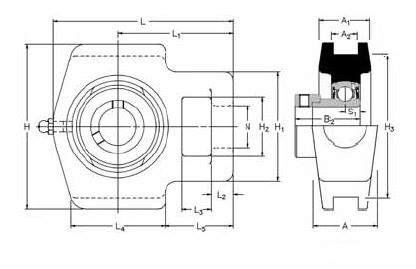

Schematic for ST 1.1/2 EC, 'Premium' Take Up Unit with a 1.1/2 inch bore.
A	49.5mm
A1	37mm
A2	17.5mm
B2	43.73mm
H	118mm
H1	82.5mm
H2	49.5mm
H3	101mm
KG	2.7
L	143.5mm
L1	89.2mm
L2	15.5mm
L3	20.5mm
L4	81.5mm
L5	50.5mm
N	29mm
s1	11.03mm
