UCT 216
TAKE UP UNIT WITH A 80MM BORE - TR BRAND
Cast Iron Take Up Unit complete with full width bearing insert from our TR Range.
Also known as UCT216
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£293.88 (£352.66 inc VAT)
- 5 - 9£279.20 (£335.04 inc VAT)
- 10 +£264.50 (£317.40 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCT 216 | |
| Reference | UCT 216 |
| Brand | Budget |
| Inside Diameter | 80mm |
| Weight (KG) | 8.4 |

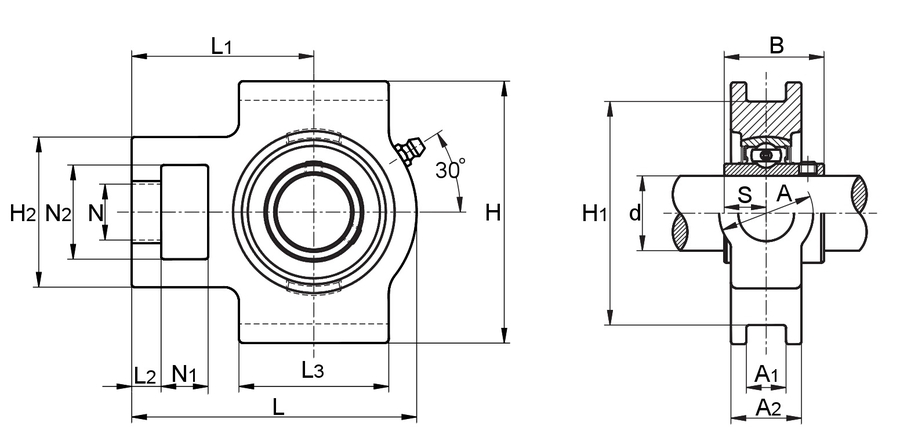

Schematic for UCT 216 | |
| A | 70mm |
| A1 | 26mm |
| A2 | 51mm |
| B | 82.6mm |
| d | 80mm |
| H | 184mm |
| H1 | 165mm |
| H2 | 111mm |
| KG | 8.4 |
| L | 235mm |
| L1 | 140mm |
| L2 | 21mm |
| L3 | 121mm |
| N | 41mm |
| N1 | 32mm |
| N2 | 70mm |
| S | 33.3mm |
