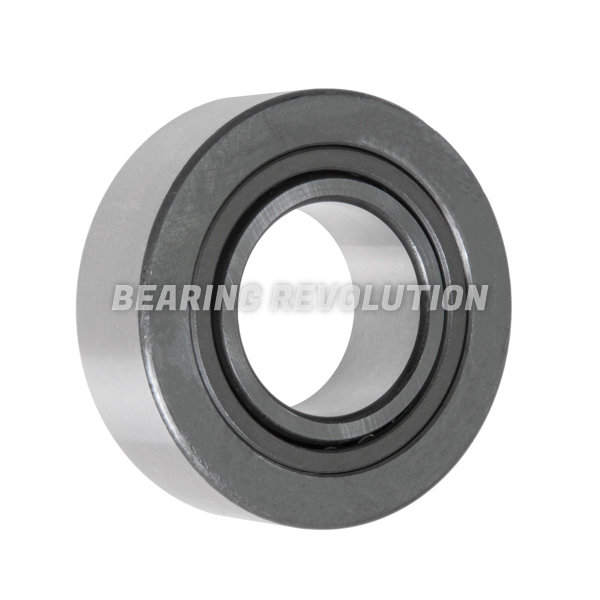

STO 45, YOKE TYPE SUPPORT ROLLER WITH A 45MM BORE - PREMIUM RANGE
Yoke type support roller outer ring and needle roller cage assembly complete with inner ring, without axial guidance for the outer ring, crowned outer, from our Premium range. 45mm ID, 85mm OD, 20mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£179.10 (£214.92 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for STO 45, Yoke Type Support Roller with a 45mm bore - Premium Range | |
| Reference | STO 45 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 20mm |
| Weight (KG) | 0.58 |

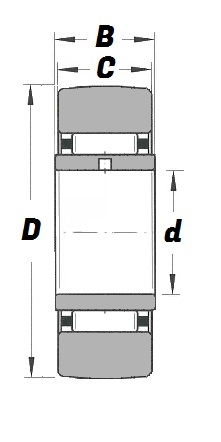

Schematic for STO 45, Yoke Type Support Roller with a 45mm bore - Premium Range | |
| B | 20mm |
| C | 19.8mm |
| d | 45mm |
| D | 85mm |
