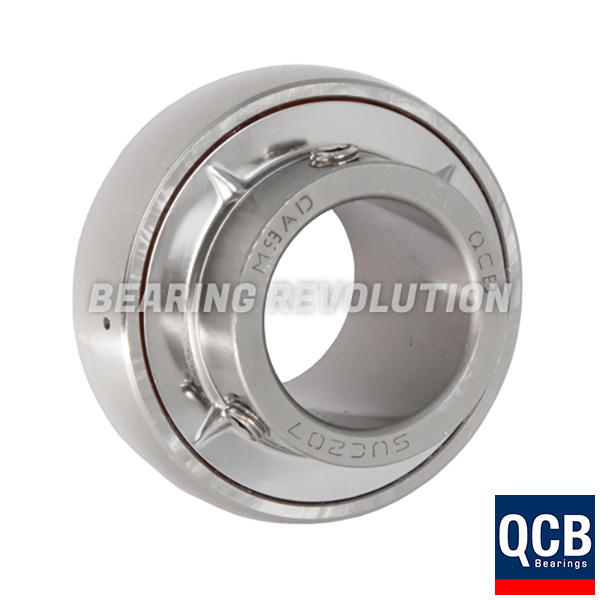

Please note photos are for illustration purposes only

SUC 201, STAINLESS STEEL BEARING INSERT WITH A 12MM BORE - SELECT RANGE

Name: SUC 201, Stainless Steel Bearing Insert with a 12mm bore - Select Range
Brand: Select
Price: 35.34 GBP
Availability: InStock

BR Stock No. S-SUC 201 | Brand: Select | Mfr. Part No. SUC 201

Full width Stainless Steel Bearing Insert filled with Food Grade Grease from our Select range. These can be used in both our Stainless Steel Units and Thermoplastic Housings. 12mm ID, 47mm OD, 31mm width. Also known as

Also known as 1020 12 S/S 6

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£29.45 (£35.34 inc VAT)
5 - 9£27.98 (£33.58 inc VAT)
10 +£26.51 (£31.81 inc VAT)
Bulk Order PricesENQUIRE

SUC 201, Stainless Steel Bearing Insert with a 12mm bore - Select Range Schematic

Specifications for SUC 201, Stainless Steel Bearing Insert with a 12mm bore - Select Range
Reference	SUC 201
Brand	Select
Inside Diameter	12mm
Outside Diameter	47mm
Width	31mm
Dyn	1000
Stat	630
Weight (KG)	0.21

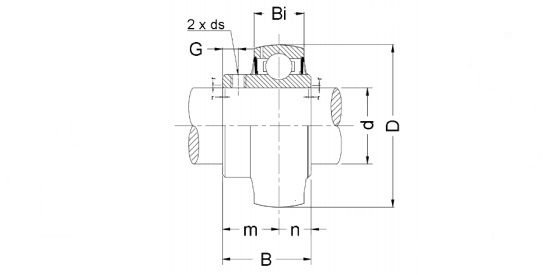

Schematic for SUC 201, Stainless Steel Bearing Insert with a 12mm bore - Select Range
B	31mm
Bi	31mm
d	12mm
D	47mm
ds	M6 x 0.75
G	5mm
KG	0.21
m	18.3mm
n	12.7mm
r (Min)	1.5mm
