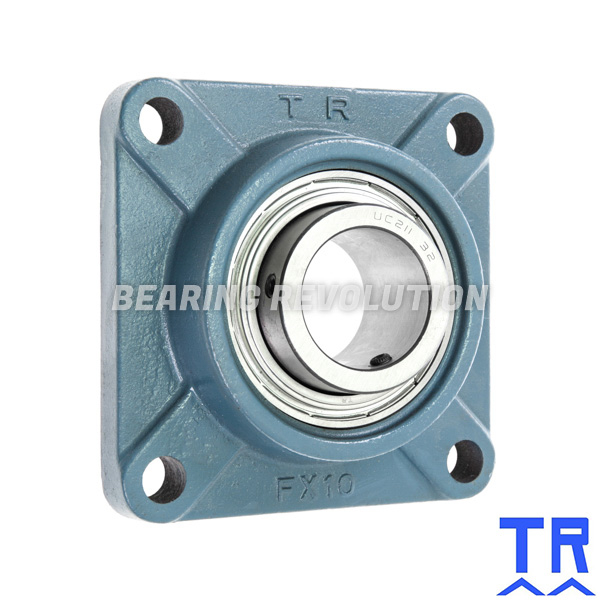

TMSF 2 ( UCFX 10 32 R3 ) - TRIPLE SEALED SQUARE FLANGED UNIT WITH A 2 INCH BORE - TR BRAND

BR Stock No. B-TMSF 2 | Brand: TR | Mfr. Part No. TMSF 2

Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width triple sealed bearing insert from our TR range.

Specifications for TMSF 2 ( UCFX 10 32 R3 ) - Triple Sealed Square Flanged Unit with a 2 inch bore - TR Brand
Reference	TMSF 2
Brand	TR
Inside Diameter	2"
Bolt	M16
Seals / Shields	Triple Sealed
Weight (KG)	3.52

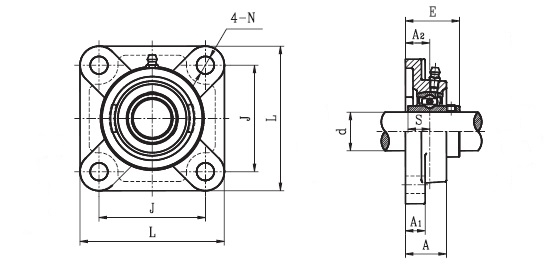

Schematic for TMSF 2 ( UCFX 10 32 R3 ) - Triple Sealed Square Flanged Unit with a 2 inch bore - TR Brand
A	44mm
A1	20mm
A2	26mm
E	59.4mm
J	130mm
KG	3.52
L	162mm
N	17mm
S	22.2mm
