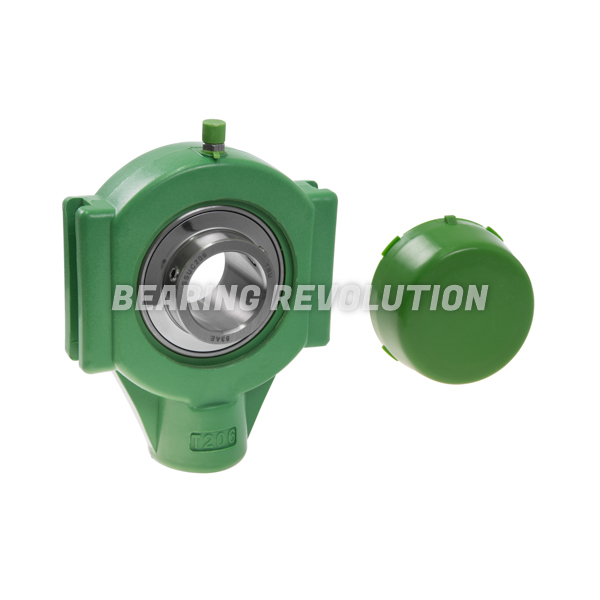

TPL 208 S/S N 6 GRN, GREEN THERMOPLASTIC TAKE UP HOUSING UNIT WITH A 40MM BORE - BUDGET RANGE
Metric Green Thermoplastic Take Up Housing Unit complete with Stainless Steel insert filled with food grade grease from our Budget range.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£117.43 (£140.92 inc VAT)
- 5 - 9£111.56 (£133.87 inc VAT)
- 10 +£105.68 (£126.82 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TPL 208 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 40mm bore - Budget Range | |
| Reference | TPL 208 S/S N 6 GRN |
| Brand | Budget |
| Inside Diameter | 40mm |
| Weight (KG) | 1.02 |

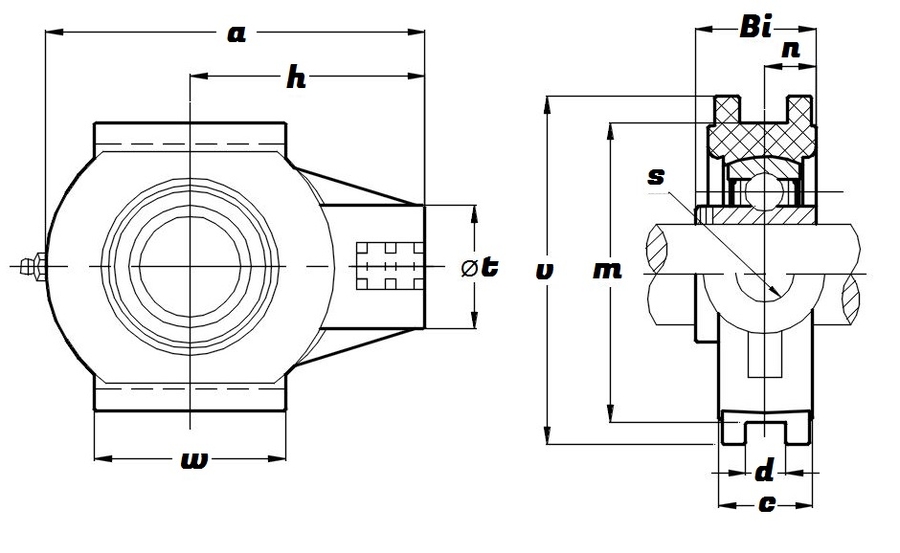

Schematic for TPL 208 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 40mm bore - Budget Range | |
| a | 140mm |
| Bi | 49.2mm |
| c | 34.5mm |
| D | 16mm |
| h | 85mm |
| KG | 1.02 |
| m | 102mm |
| n | 19mm |
| t | 40mm |
| v | 114mm |
| w | 80mm |
