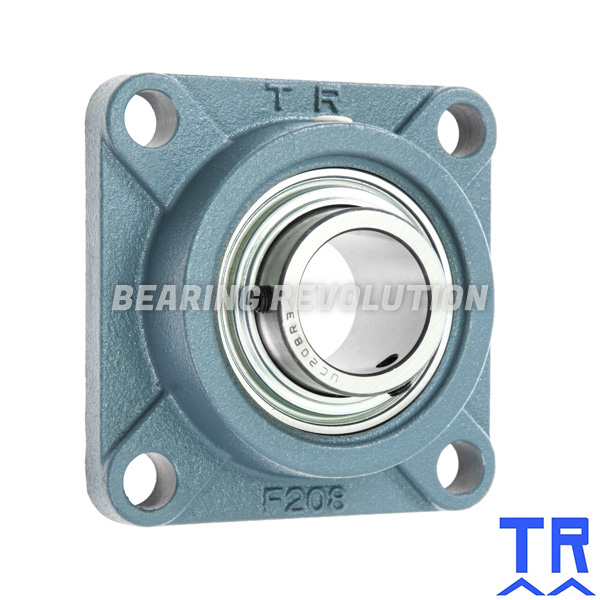

TSF 40 ( UCF 208 R3) - TRIPLE SEALED SQUARE FLANGED UNIT WITH A 40MM BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£57.63 (£69.16 inc VAT)
- 5 - 9£54.74 (£65.69 inc VAT)
- 10 +£51.87 (£62.24 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSF 40 ( UCF 208 R3) - Triple Sealed Square Flanged Unit with a 40mm bore - TR Brand | |
| Reference | TSF 40 |
| Brand | TR |
| Inside Diameter | 40mm |
| Bolt | M12 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.81 |
Schematic for TSF 40 ( UCF 208 R3) - Triple Sealed Square Flanged Unit with a 40mm bore - TR Brand | |
| A | 36mm |
| A1 | 15mm |
| A2 | 21mm |
| A4 | 55mm |
| E | 51.2mm |
| J | 102mm |
| KG | 1.81 |
| L | 130mm |
| N | 14mm |
| S | 19mm |
