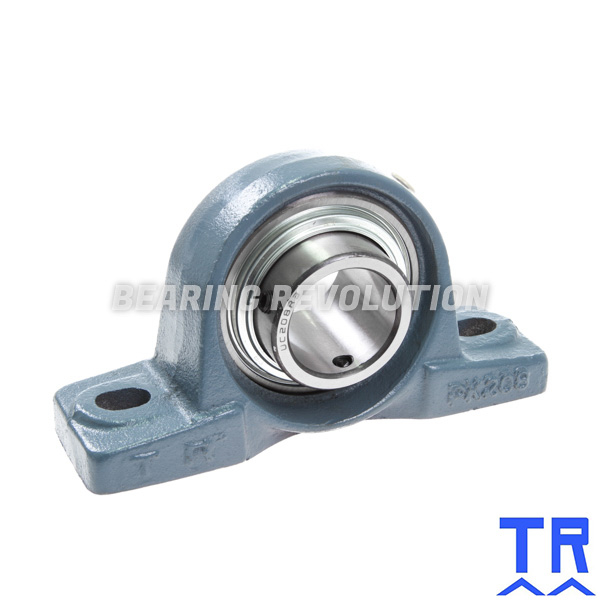

TSL 55 ( UCPK 211 R3 ) - TRIPLE SEALED PILLOW BLOCK HOUSING UNIT WITH A 55MM BORE - TR BRAND
Cast Iron Pillow Block Housing Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£99.10 (£118.92 inc VAT)
- 5 - 9£94.15 (£112.98 inc VAT)
- 10 +£89.20 (£107.04 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSL 55 ( UCPK 211 R3 ) - Triple Sealed Pillow Block Housing Unit with a 55mm bore - TR Brand | |
| Reference | TSL 55 |
| Brand | TR |
| Inside Diameter | 55mm |
| Bolt | M16 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 3.92 |
Schematic for TSL 55 ( UCPK 211 R3 ) - Triple Sealed Pillow Block Housing Unit with a 55mm bore - TR Brand | |
| A | 60mm |
| B | 55.6mm |
| H | 61.9mm |
| H0 | 123mm |
| H1 | 23mm |
| J | 181mm |
| KG | 3.92 |
| L | 232mm |
| N | 18mm |
| N1 | 24mm |
| S | 22.2mm |
