TSNP 30 ( UCPA 206 A R3 ) - TRIPLE SEALED TAPPED BASE PILLOW BLOCK WITH A 30MM BORE - TR BRAND
Cast Iron Tapped Base Pillow Block complete with full width triple sealed bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£51.29 (£61.55 inc VAT)
- 5 - 9£48.72 (£58.46 inc VAT)
- 10 +£46.17 (£55.40 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSNP 30 ( UCPA 206 A R3 ) - Triple Sealed Tapped Base Pillow Block with a 30mm bore - TR Brand | |
| Reference | TSNP 30 |
| Brand | TR |
| Inside Diameter | 30mm |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.15 |

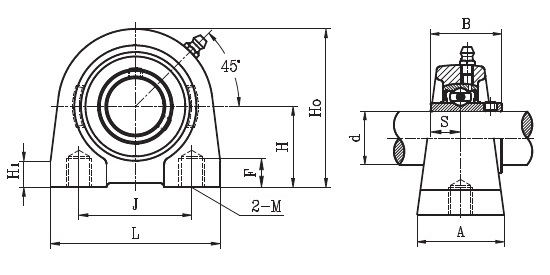

Schematic for TSNP 30 ( UCPA 206 A R3 ) - Triple Sealed Tapped Base Pillow Block with a 30mm bore - TR Brand | |
| A | 38mm |
| B | 38.1mm |
| F | 16mm |
| H | 42.9mm |
| H0 | 85.7mm |
| H1 | 15mm |
| J | 76.2mm |
| KG | 1.15 |
| L | 101.6mm |
| M | M10 |
| S | 15.9mm |
