UC 204 R3
BEARING INSERT WITH A 20MM BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 20mm, OD 47mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as T 1020 20, T102020, UC204R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£11.76 (£14.11 inc VAT)
- 5 - 9£11.17 (£13.40 inc VAT)
- 10 +£10.59 (£12.71 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UC 204 R3 | |
| Reference | T 1020 20 |
| Brand | Budget |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Dyn | 12800 |
| Seals / Shields | Triple Sealed |
| Stat | 6650 |
| Weight (KG) | 0.16 |

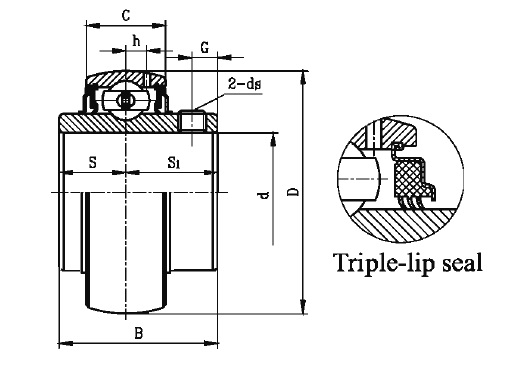

Schematic for UC 204 R3 | |
| B | 31mm |
| C | 16mm |
| d | 20mm |
| D | 47mm |
| ds | M6x1 |
| G | 4.7mm |
| h | 4.4mm |
| KG | 0.16 |
| S | 12.7mm |
| s1 | 18.3mm |
