UC 205 14 R3
BEARING INSERT WITH A .7/8 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID .7/8", OD 52mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as T 1025 .7/8, T1025.7/8, UC20514R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£14.40 (£17.28 inc VAT)
- 5 - 9£13.69 (£16.43 inc VAT)
- 10 +£12.97 (£15.56 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UC 205 14 R3 | |
| Reference | T 1025 .7/8 |
| Brand | Budget |
| Inside Diameter | .7/8" |
| Outside Diameter | 52mm |
| Dyn | 14000 |
| Seals / Shields | Triple Sealed |
| Stat | 7880 |
| Weight (KG) | 0.23 |

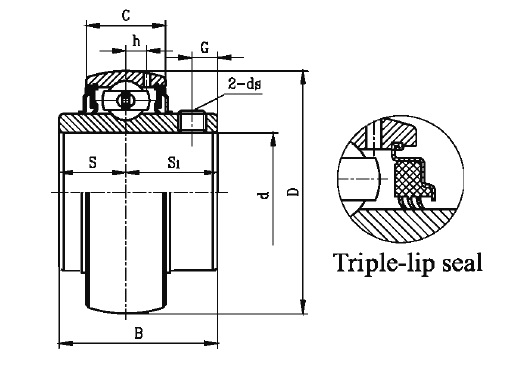

Schematic for UC 205 14 R3 | |
| B | 34mm |
| C | 17mm |
| d | .7/8" |
| D | 52mm |
| ds | M6x1 |
| G | 5.5mm |
| h | 4.3mm |
| KG | 0.23 |
| S | 14.3mm |
| s1 | 19.7mm |
