UC 207 21 R3

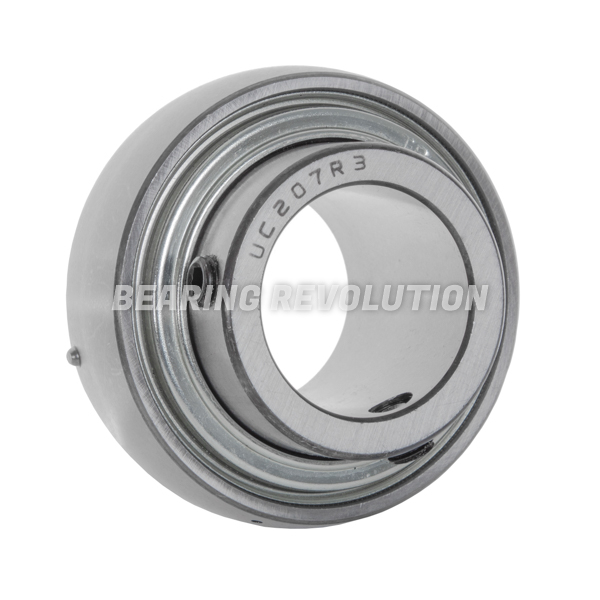

BEARING INSERT WITH A 1.5/16 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 1.5/16", OD 72mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as T10351.5/16, UC20721R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£20.28 (£24.34 inc VAT)
- 5 - 9£19.27 (£23.12 inc VAT)
- 10 +£18.25 (£21.90 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UC 207 21 R3 | |
| Reference | T 1035 1.5/16 |
| Brand | Budget |
| Inside Diameter | 1.5/16" |
| Outside Diameter | 72mm |
| Dyn | 25700 |
| Seals / Shields | Triple Sealed |
| Stat | 15200 |
| Weight (KG) | 0.5 |

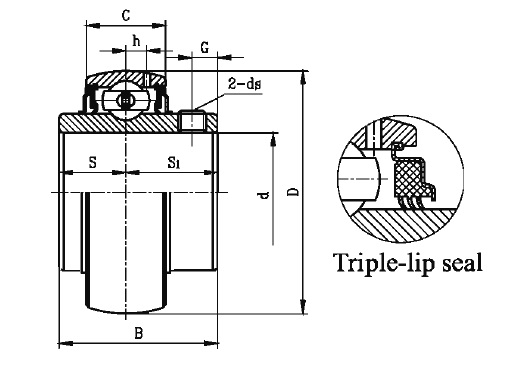

Schematic for UC 207 21 R3 | |
| B | 42.9mm |
| C | 20mm |
| d | 1.5/16" |
| D | 72mm |
| ds | M8x1 |
| G | 6.5mm |
| h | 5.8mm |
| KG | 0.5 |
| S | 17.5mm |
| s1 | 25.4mm |
