UC 210 31 R3
BEARING INSERT WITH A 1.15/16 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 1.15/16", OD 90mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as T 1050 1.15/16, T10501.15/16, UC21031R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£30.68 (£36.82 inc VAT)
- 5 - 9£29.14 (£34.97 inc VAT)
- 10 +£27.62 (£33.14 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UC 210 31 R3 | |
| Reference | T 1050 1.15/16 |
| Brand | Budget |
| Inside Diameter | 1.15/16" |
| Outside Diameter | 90mm |
| Dyn | 35100 |
| Seals / Shields | Triple Sealed |
| Stat | 23200 |
| Weight (KG) | 0.79 |

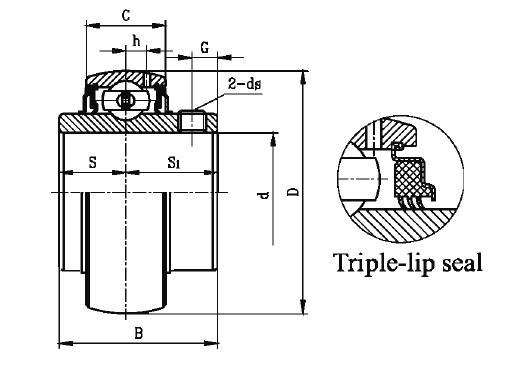

Schematic for UC 210 31 R3 | |
| B | 51.6mm |
| C | 23mm |
| d | 1.15/16" |
| D | 90mm |
| ds | M10x1.25 |
| G | 9mm |
| h | 6.5mm |
| KG | 0.79 |
| S | 19mm |
| s1 | 32.6mm |
