UC 311 35

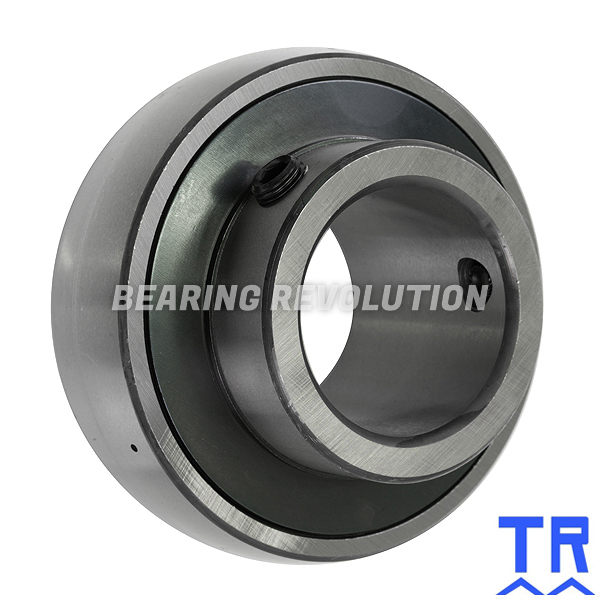

BEARING INSERT WITH A 2.3/16 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 2.3/16", OD 120mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as UC31135
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£155.68 (£186.82 inc VAT)
- 5 - 9£147.89 (£177.47 inc VAT)
- 10 +£140.11 (£168.13 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UC 311 35 | |
| Reference | UC 311 35 |
| Brand | Budget |
| Inside Diameter | 2.3/16" |
| Outside Diameter | 120mm |
| Dyn | 71500 |
| Stat | 44800 |
| Weight (KG) | 2.02 |

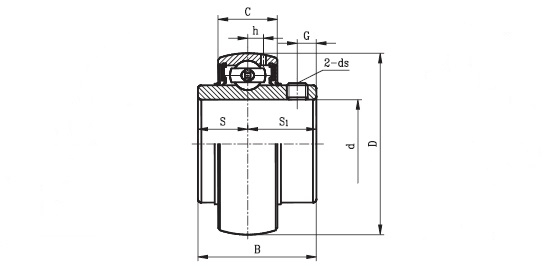

Schematic for UC 311 35 | |
| B | 66mm |
| C | 34mm |
| D | 120mm |
| ds | M12x1.25 |
| G | 12mm |
| h | 10.6mm |
| KG | 2.02 |
| S | 25mm |
| S1 | 41mm |
