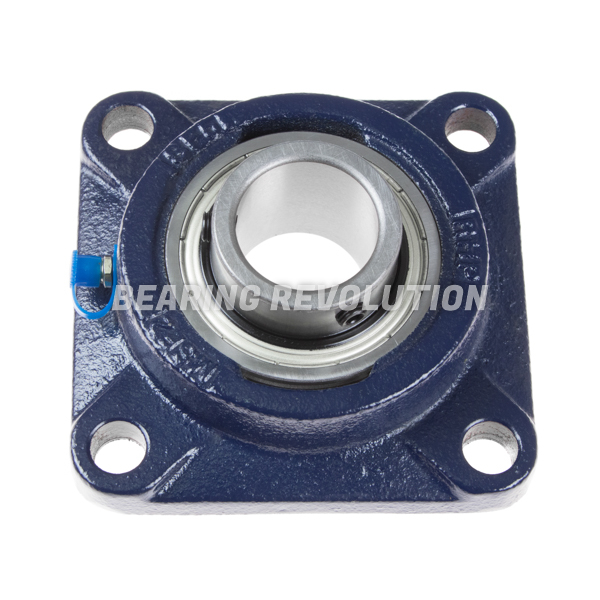

UCF 206 - BEARING UNIT
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our Premium Range. Also known as UCF 206.
Also known as SF 30, UCF206, SF30
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£67.08 (£80.50 inc VAT)
- 5 +£63.72 (£76.46 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 206 - Bearing Unit | |
| Reference | SF 30 |
| Brand | Premium |
| Inside Diameter | 30mm |
| Weight (KG) | 1.3 |

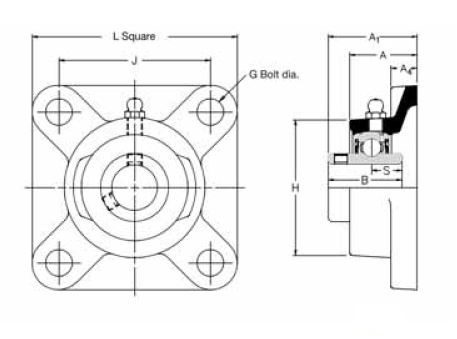

Schematic for UCF 206 - Bearing Unit | |
| A | 29.8mm |
| G | 10mm |
| J | 82.5mm |
| KG | 1.3 |
| L | 108mm |
