UCF 207-22 - BEARING UNIT
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
Also known as UCF207-22, SF 1.3/8, UCF20722, SF1.3/8
- UnitsPer unit
- 1 - 4£46.18 (£55.42 inc VAT)
- 5 - 9£43.87 (£52.64 inc VAT)
- 10 +£41.56 (£49.87 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 207-22 - Bearing Unit | |
| Reference | SF 1.3/8 |
| Brand | TR |
| Inside Diameter | 1.3/8" |
| Bolt | M12 |
| Weight (KG) | 1.54 |

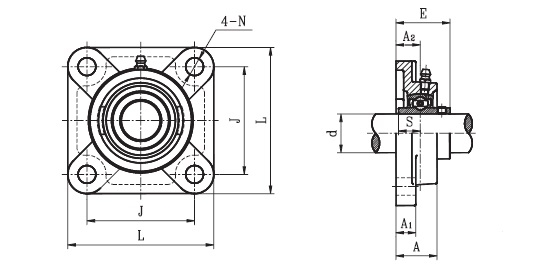

Schematic for UCF 207-22 - Bearing Unit | |
| A | 34mm |
| A1 | 15mm |
| A2 | 19mm |
| A4 | 48.5mm |
| E | 44.4mm |
| J | 92mm |
| KG | 1.54 |
| L | 117mm |
| N | 14mm |
| S | 17.5mm |
