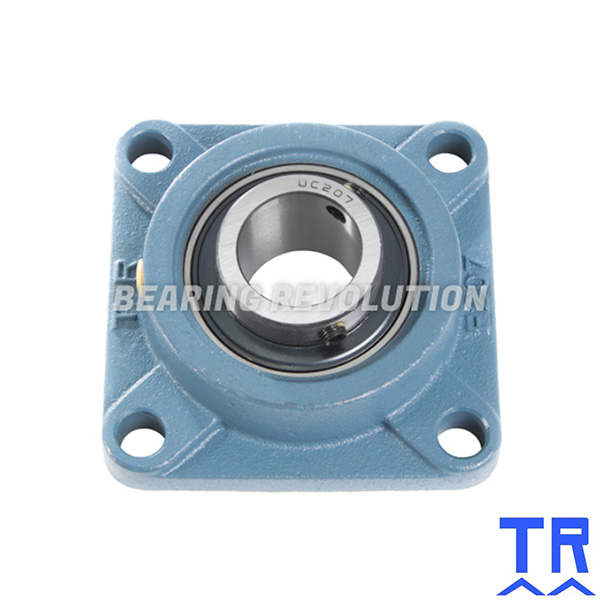

UCF 211-34 - BEARING UNIT
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
Also known as UCF211-34, SF 2.1/8, UCF21134, SF2.1/8
- UnitsPer unit
- 1 - 4£90.11 (£108.13 inc VAT)
- 5 - 9£85.61 (£102.73 inc VAT)
- 10 +£81.10 (£97.32 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 211-34 - Bearing Unit | |
| Reference | SF 2.1/8 |
| Brand | TR |
| Inside Diameter | 2.1/8" |
| Bolt | M16 |
| Weight (KG) | 3.07 |

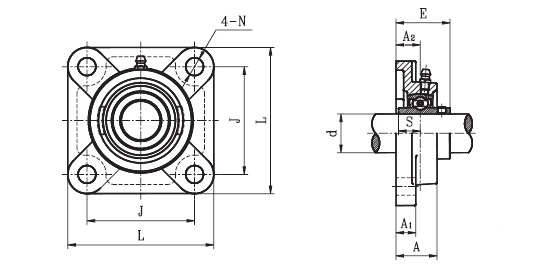

Schematic for UCF 211-34 - Bearing Unit | |
| A | 43mm |
| A1 | 18mm |
| A2 | 25mm |
| A4 | 64mm |
| E | 58.4mm |
| J | 130mm |
| KG | 3.07 |
| L | 162mm |
| N | 18mm |
| S | 22.2mm |
