UCFA 204
ADJUSTABLE FLANGE UNIT WITH A 20MM BORE - TR BRAND

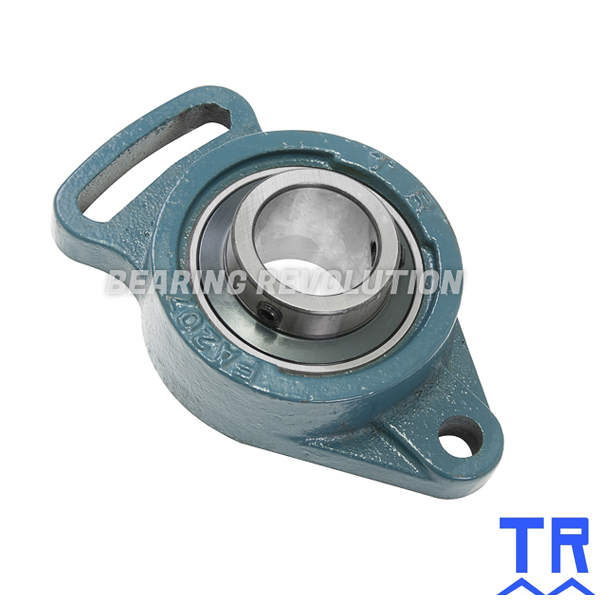

Cast Iron Adjustable Flange Unit complete with full width bearing insert from our TR Range.
Also known as UCFA204
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£34.67 (£41.60 inc VAT)
- 5 - 9£32.94 (£39.53 inc VAT)
- 10 +£31.20 (£37.44 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFA 204 | |
| Reference | UCFA 204 |
| Brand | Budget |
| Inside Diameter | 20mm |
| Bolt | M8 |
| Weight (KG) | 0.38 |

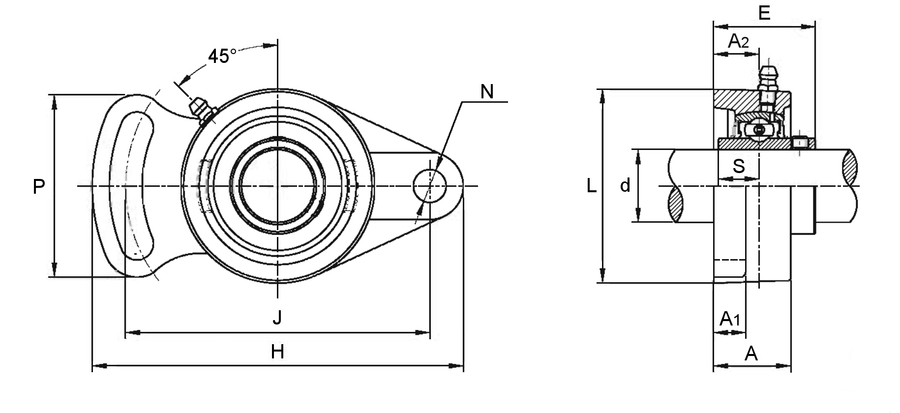

Schematic for UCFA 204 | |
| A | 24mm |
| A1 | 11mm |
| A2 | 13.74mm |
| d | 20mm |
| E | 32.04mm |
| H | 98mm |
| J | 78mm |
| KG | 0.38 |
| L | 59mm |
| N | 10mm |
| P | 50mm |
| S | 12.7mm |
