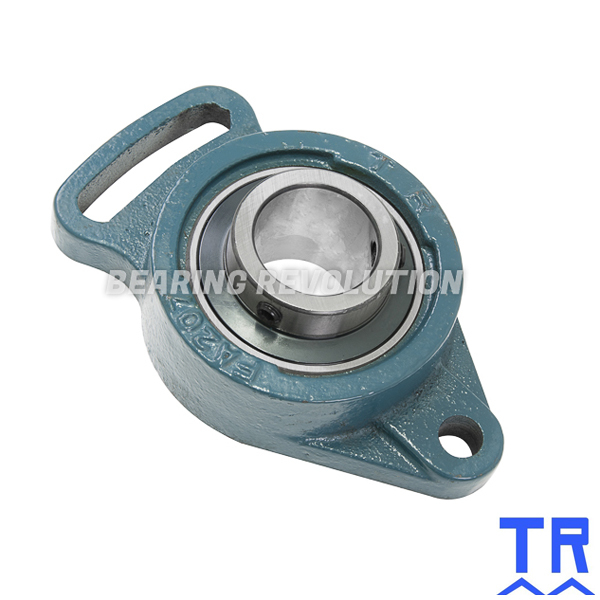

UCFA 205
ADJUSTABLE FLANGE UNIT WITH A 25MM BORE - TR BRAND
Cast Iron Adjustable Flange Unit complete with full width bearing insert from our TR Range.
Also known as UCFA205
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£41.74 (£50.09 inc VAT)
- 5 - 9£39.66 (£47.59 inc VAT)
- 10 +£37.57 (£45.08 inc VAT)
- Bulk Order PricesENQUIRE

Specifications for UCFA 205 | |
Reference | UCFA 205 |
Brand | Budget |
Inside Diameter | 25mm |
Bolt | M10 |
Weight (KG) | 0.65 |

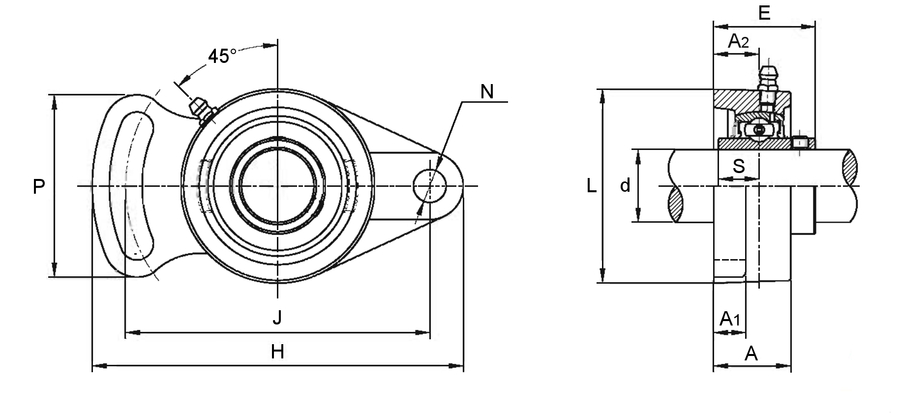

Schematic for UCFA 205 | |
A | 27mm |
A1 | 13mm |
A2 | 16mm |
d | 25mm |
E | 35.7mm |
H | 122mm |
J | 96mm |
KG | 0.65 |
L | 70mm |
N | 12mm |
P | 64mm |
S | 14.3mm |
