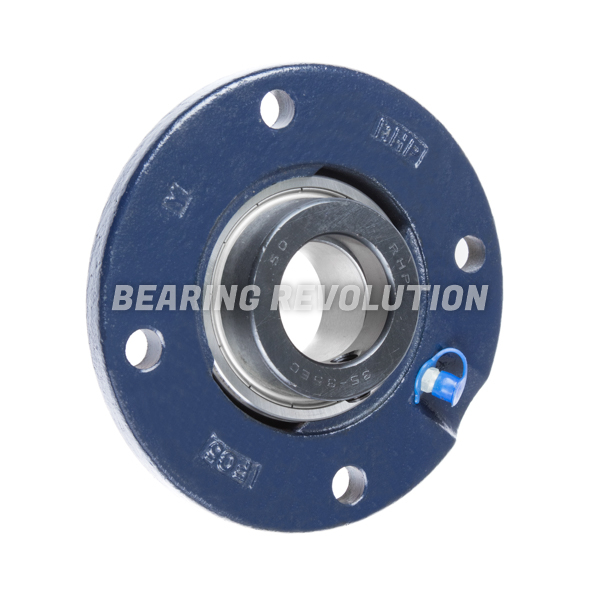

FC 1.1/2 EC, 'PREMIUM' ROUND FLANGE UNIT WITH A 1.1/2 INCH BORE.
Cast Iron Round Flange Cartridge Bearing Unit complete with flat back bearing insert and eccentric collar lock from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£124.85 (£149.82 inc VAT)
- 5 +£118.60 (£142.32 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FC 1.1/2 EC, 'Premium' Round Flange Unit with a 1.1/2 inch bore. | |
| Reference | FC 1.1/2 EC |
| Brand | Premium |
| Inside Diameter | 1.1/2" |
| Weight (KG) | 1.8 |

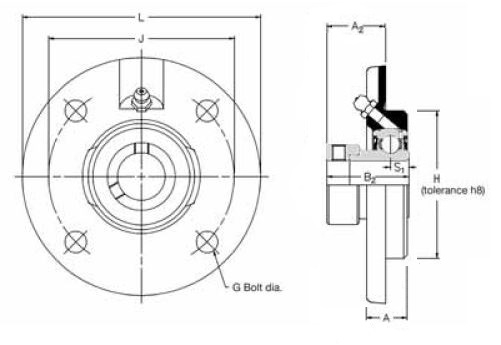

Schematic for FC 1.1/2 EC, 'Premium' Round Flange Unit with a 1.1/2 inch bore. | |
| A | 23mm |
| A1 | 29.18mm |
| A2 | 31.59mm |
| B | 49.2mm |
| B2 | 43.73mm |
| G | 10mm |
| H | 100mm |
| J | 120mm |
| KG | 1.8 |
| L | 145mm |
