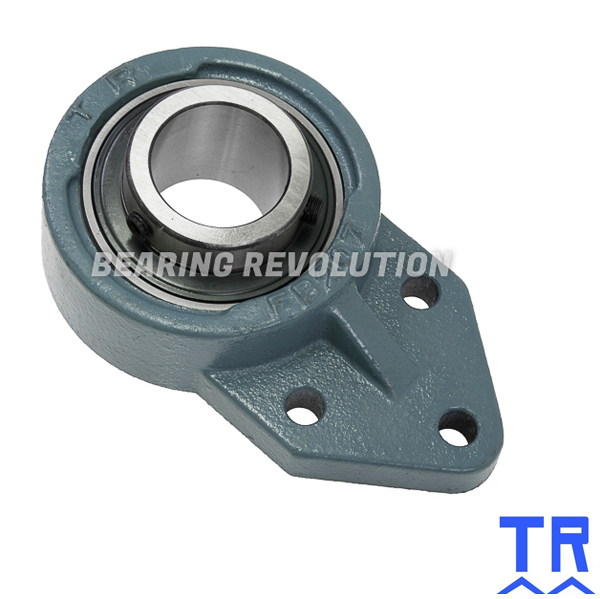

UCFB 209
FLANGED BRACKET UNIT WITH A 45MM BORE - TR BRAND
Cast Iron Flanged Bracket Unit complete with full width bearing insert from our TR Range.
Also known as UCFB209
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£92.94 (£111.53 inc VAT)
- 5 - 9£88.29 (£105.95 inc VAT)
- 10 +£83.65 (£100.38 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFB 209 | |
| Reference | UCFB 209 |
| Brand | Budget |
| Inside Diameter | 45mm |
| Bolt | M10 |
| Weight (KG) | 1.97 |

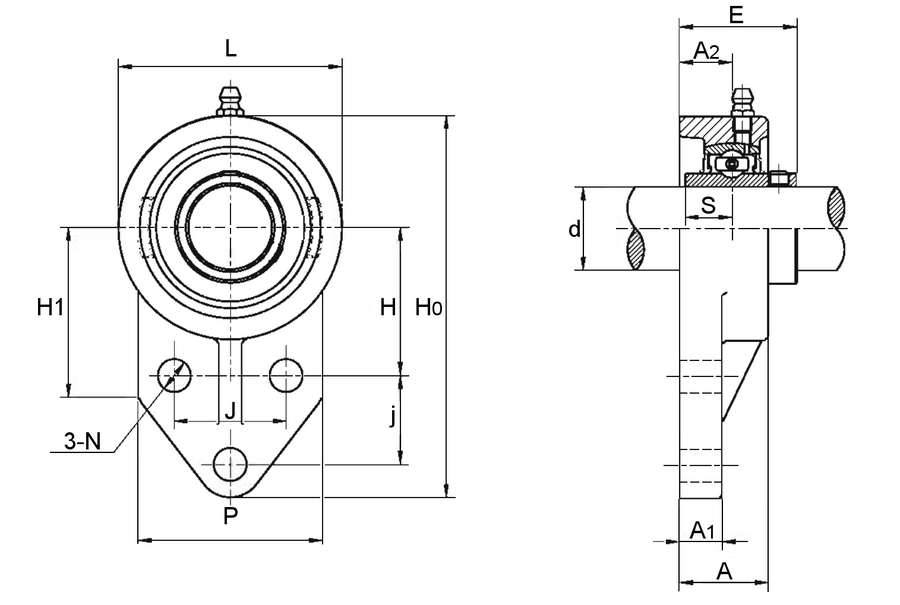

Schematic for UCFB 209 | |
| A | 38mm |
| A1 | 16mm |
| A2 | 22mm |
| d | 45mm |
| E | 52.2mm |
| H | 65mm |
| H0 | 175mm |
| H1 | 76mm |
| j | 43mm |
| J | 54mm |
| KG | 19 |
| L | 108mm |
| N | 12mm |
| P | 80mm |
| S | 19mm |
