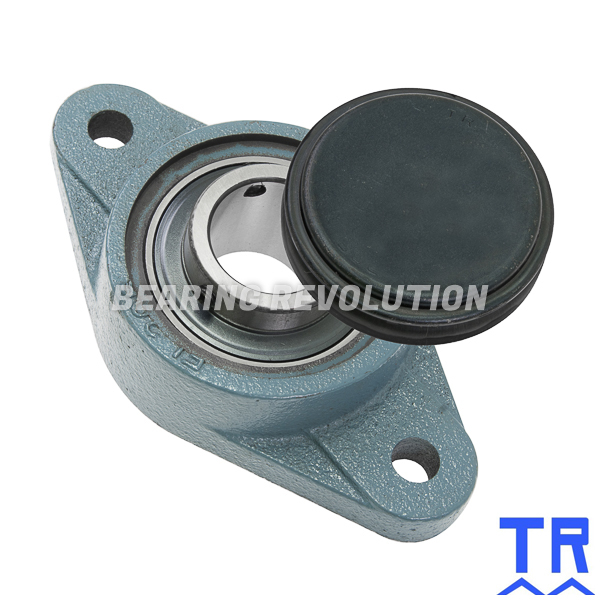

UCFL 205 14 SM
OVAL FLANGE UNIT WITH A .7/8 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert and end cap from our TR Range.
Also known as SFT .7/8 + END CAP, SFT.7/8+ENDCAP, UCFL20514SM
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£84.46 (£101.35 inc VAT)
- 5 - 9£80.22 (£96.26 inc VAT)
- 10 +£76.00 (£91.20 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFL 205 14 SM | |
| Reference | SFT .7/8 + END CAP |
| Brand | Budget |
| Inside Diameter | .7/8" |
| Bolt | M10 |
| Weight (KG) | 0.61 |

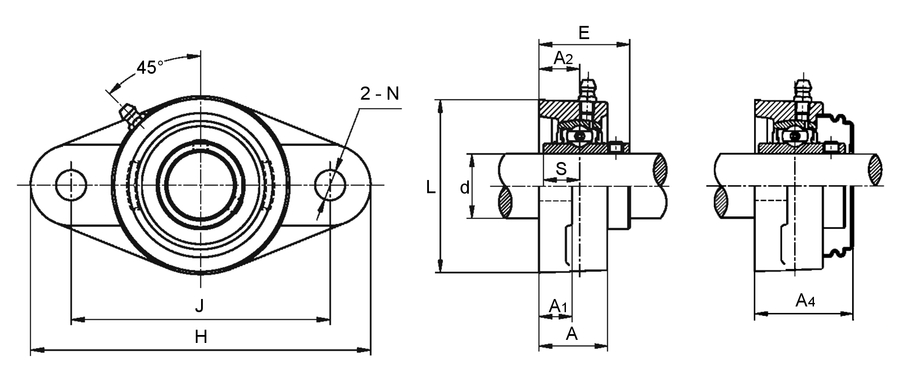

Schematic for UCFL 205 14 SM | |
| A | 27mm |
| A1 | 13mm |
| A2 | 16mm |
| A4 | 40mm |
| E | 35.7mm |
| H | 130mm |
| J | 90mm |
| KG | 0.61 |
| L | 68mm |
| N | 11.5mm |
| S | 14.3mm |
