UCFL 207 22 SM
OVAL FLANGE UNIT WITH A 1.3/8 INCH BORE - TR BRAND

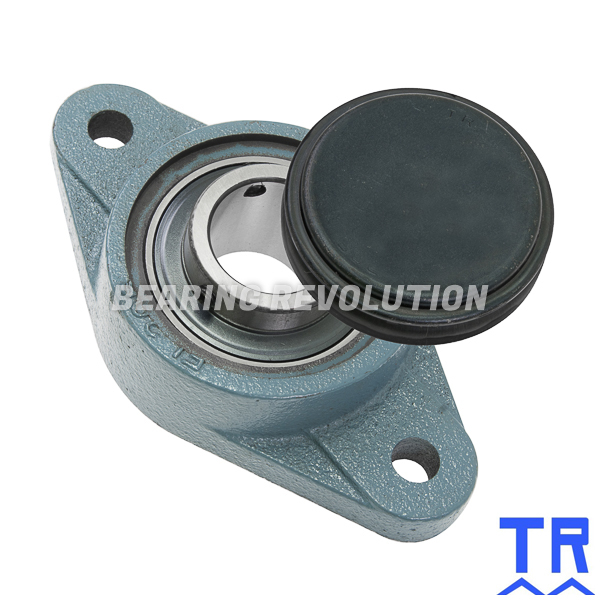

Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert and end cap from our TR Range.
Also known as SFT 1.3/8 + END CAP, SFT1.3/8+ENDCAP, UCFL20722SM
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£115.41 (£138.49 inc VAT)
- 5 - 9£109.66 (£131.59 inc VAT)
- 10 +£103.88 (£124.66 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFL 207 22 SM | |
| Reference | SFT 1.3/8 + END CAP |
| Brand | Budget |
| Inside Diameter | 1.3/8" |
| Bolt | M12 |
| Weight (KG) | 1.21 |

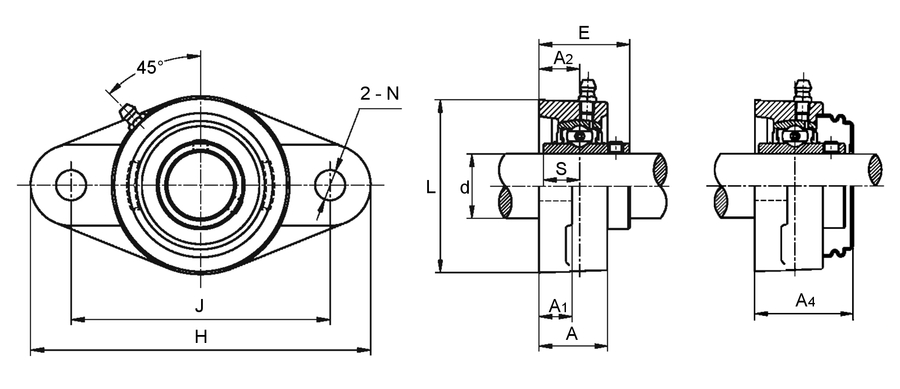

Schematic for UCFL 207 22 SM | |
| A | 34mm |
| A1 | 14mm |
| A2 | 19mm |
| A4 | 48.5mm |
| E | 44.4mm |
| H | 161mm |
| J | 130mm |
| KG | 1.21 |
| L | 90mm |
| N | 14mm |
| S | 17.5mm |
