UCFL 215 48

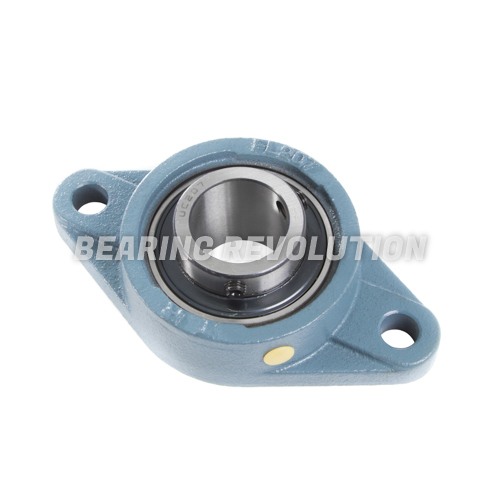

OVAL FLANGE UNIT WITH A 3 INCH BORE - TR BRAND
Cast Iron Oval Flange Unit complete with full width bearing insert from our TR Range.
Also known as UCFL21548
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£286.83 (£344.20 inc VAT)
- 5 - 9£272.48 (£326.98 inc VAT)
- 10 +£258.14 (£309.77 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCFL 215 48 | |
| Reference | UCFL 215 48 |
| Brand | Budget |
| Inside Diameter | 3" |
| Bolt | M20 |
| Weight (KG) | 5.38 |

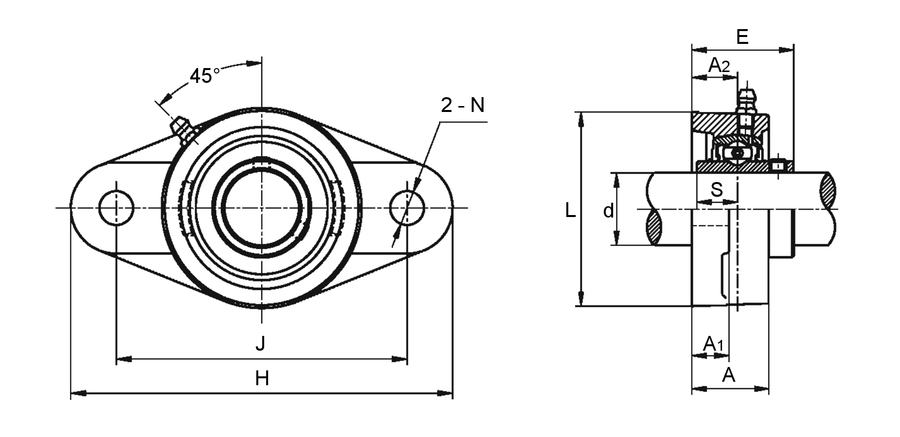

Schematic for UCFL 215 48 | |
| A | 55mm |
| A1 | 22mm |
| A2 | 34mm |
| d | 3" |
| E | 78.5mm |
| H | 275mm |
| J | 225mm |
| KG | 5.38 |
| L | 164mm |
| N | 23mm |
| S | 33.3mm |
