UCP 208 24 SM

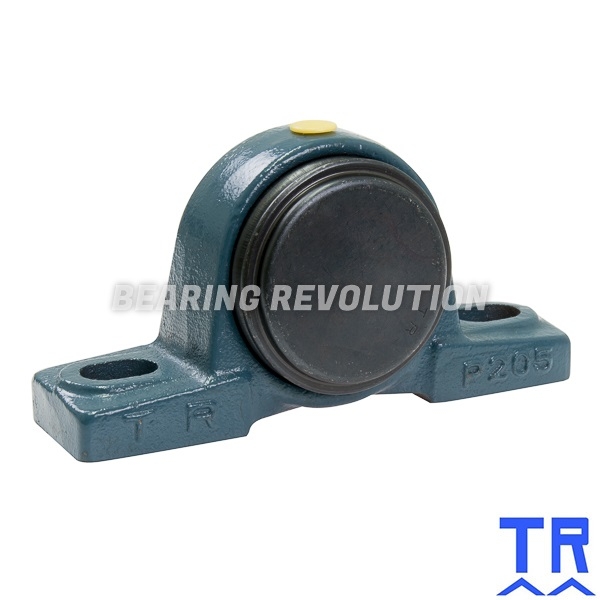

PILLOW BLOCK HOUSING UNIT WITH A 1.1/2 INCH BORE - TR BRAND

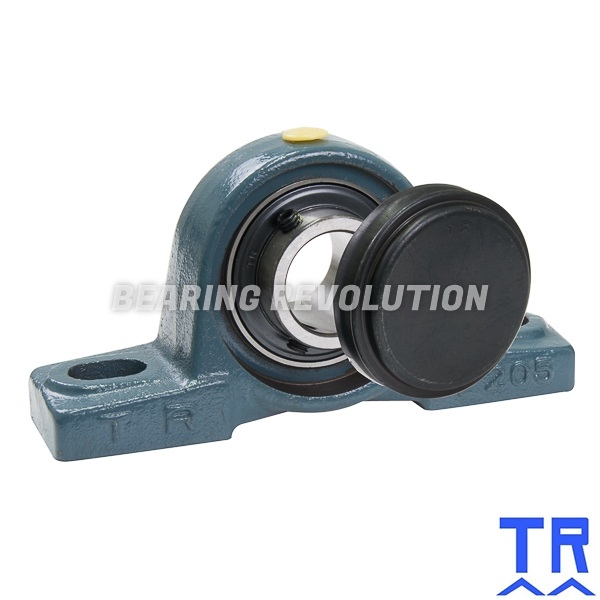

Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert and end cap from our TR Range.
Also known as NP 1.1/2 + END CAP, NP1.1/2+ENDCAP, UCP20824SM
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£131.15 (£157.38 inc VAT)
- 5 - 9£124.58 (£149.50 inc VAT)
- 10 +£118.02 (£141.62 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCP 208 24 SM | |
| Reference | NP 1.1/2 + END CAP |
| Brand | Budget |
| Inside Diameter | 1.1/2" |
| Bolt | M12 |
| Weight (KG) | 1.99 |

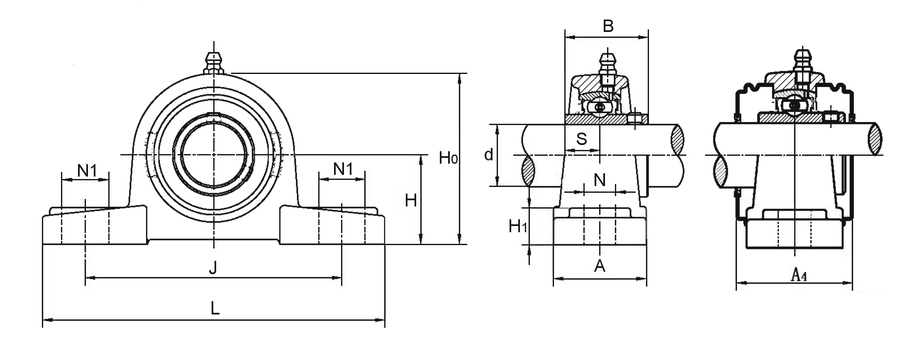

Schematic for UCP 208 24 SM | |
| A | 52mm |
| A4 | 68mm |
| B | 49.2mm |
| H | 49.2mm |
| H0 | 100mm |
| H1 | 18mm |
| J | 136mm |
| KG | 1.99 |
| L | 180mm |
| N | 15mm |
| N1 | 21mm |
| S | 19mm |
