UCP 320
PILLOW BLOCK HOUSING UNIT WITH A 100MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert from our TR Range.
Also known as UCP320
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£1,695.05 (£2,034.06 inc VAT)
- 5 - 9£1,610.30 (£1,932.36 inc VAT)
- 10 +£1,525.55 (£1,830.66 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCP 320 | |
| Reference | UCP 320 |
| Brand | Budget |
| Inside Diameter | 100mm |
| Bolt | M30 |
| Weight (KG) | 37.2 |

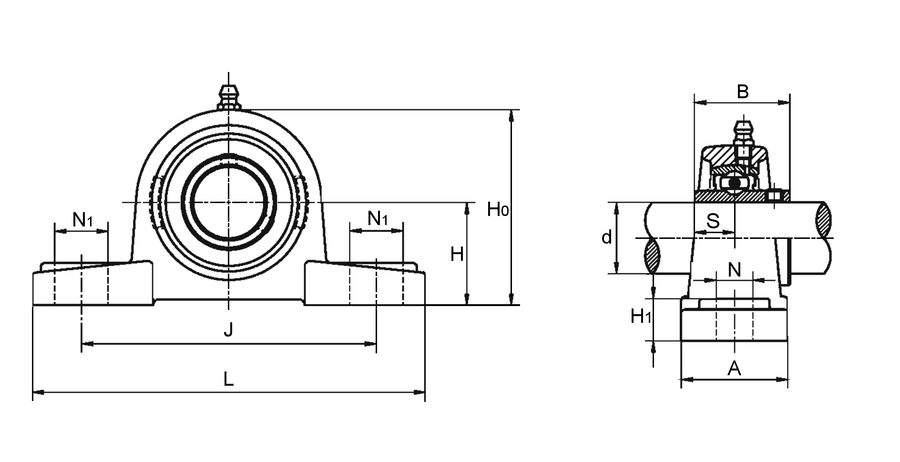

Schematic for UCP 320 | |
| A | 120mm |
| B | 108mm |
| H | 140mm |
| H0 | 275mm |
| H1 | 50mm |
| J | 380mm |
| KG | 37.2 |
| L | 490mm |
| N | 36mm |
| N1 | 50mm |
| S | 42mm |
