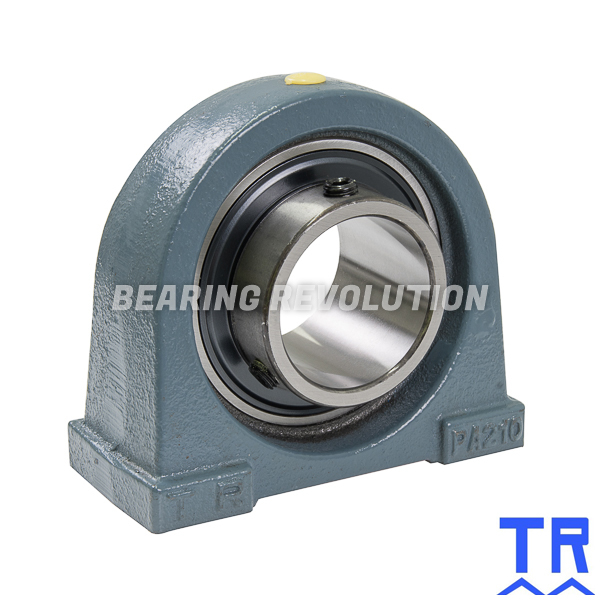

UCPA 210
TAPPED BASE PILLOW BLOCK WITH A 50MM BORE - TR BRAND
Cast Iron Tapped Base Pillow Block complete with full width bearing insert from our TR Range.
Also known as UCPA210
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£80.31 (£96.37 inc VAT)
- 5 - 9£76.30 (£91.56 inc VAT)
- 10 +£72.28 (£86.74 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCPA 210 | |
| Reference | UCPA 210 |
| Brand | Budget |
| Inside Diameter | 50mm |
| Weight (KG) | 2.65 |

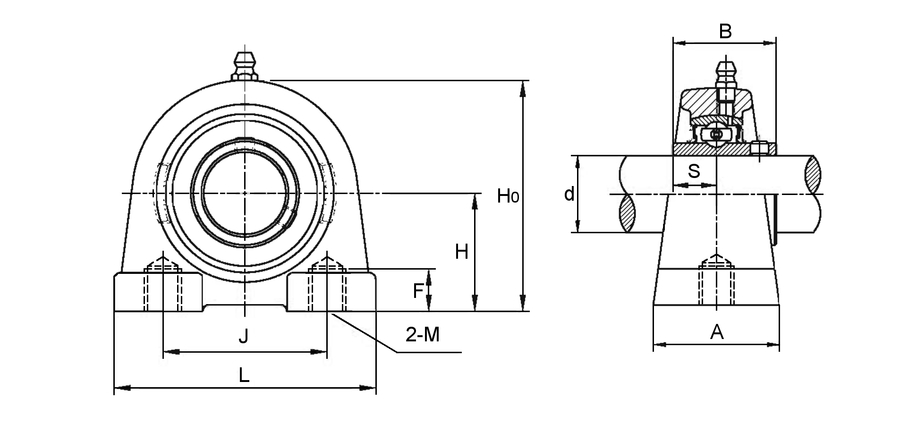

Schematic for UCPA 210 | |
| A | 60mm |
| B | 51.6mm |
| F | 25mm |
| H | 57.2mm |
| H0 | 116mm |
| H1 | 14mm |
| J | 94mm |
| KG | 2.65 |
| L | 130mm |
| M | M16 |
| S | 19mm |
