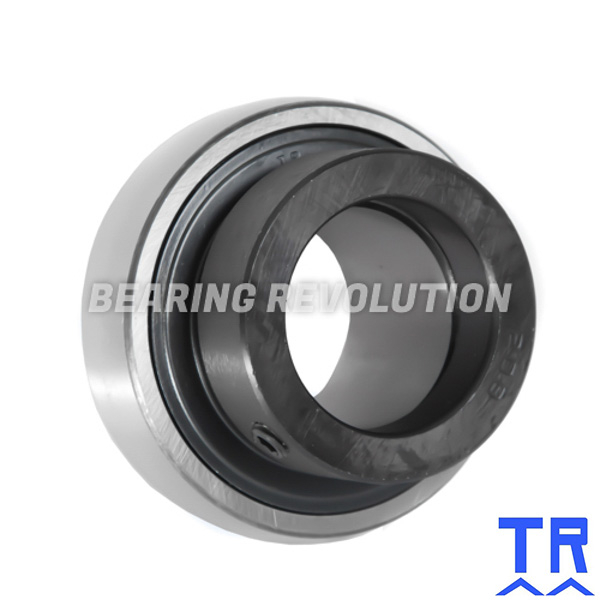

1040 1.1/2 DEC ( NA 208 24 ) - BEARING INSERT WITH A 1.1/2 INCH BORE - TR BRAND
Full Width Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.1/2" ID, 80mm OD, 42.8mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£22.98 (£27.58 inc VAT)
- 5 - 9£21.82 (£26.18 inc VAT)
- 10 +£20.69 (£24.83 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1040 1.1/2 DEC ( NA 208 24 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand | |
Reference | 1040 1.1/2 DEC |
Brand | TR |
Inside Diameter | 1.1/2" |
Outside Diameter | 80mm |
Width | 21mm |
Dyn | 29600 |
Stat | 18200 |
Type | Eccentric Collar Lock |
Weight (KG) | 0.79 |

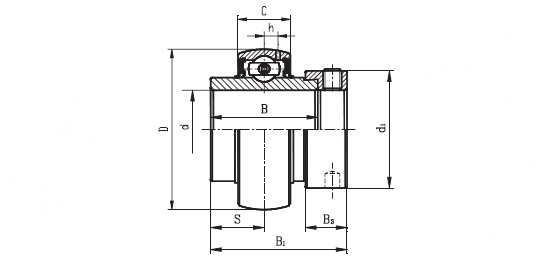

Schematic for 1040 1.1/2 DEC ( NA 208 24 ) - Bearing Insert with a 1.1/2 inch bore - TR Brand | |
B | 42.8mm |
B1 | 56.3mm |
B3 | 18.3mm |
C | 21mm |
D | 80mm |
d1 | 58mm |
h | 6.3mm |
KG | 0.79 |
S | 21.4mm |
