1245 1.3/4 EC ( SA 209 28 ) - BEARING INSERT WITH A 1.3/4 INCH BORE - TR BRAND
Flat Back 'SA Type' Bearing Insert complete with Eccentric Collar to allow tightening against the shaft, from our TR Range. 1.3/4" ID, 85mm OD, 30.2mm width. These bearings can also be supplied complete with Housings in our Bearing Units section.
- UnitsPer unit
- 1 - 4£20.28 (£24.34 inc VAT)
- 5 - 9£19.27 (£23.12 inc VAT)
- 10 +£18.25 (£21.90 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1245 1.3/4 EC ( SA 209 28 ) - Bearing Insert with a 1.3/4 inch bore - TR Brand | |
| Reference | 1245 1.3/4 EC |
| Brand | TR |
| Inside Diameter | 1.3/4" |
| Outside Diameter | 85mm |
| Width | 19mm |
| Dyn | 31850 |
| Stat | 20800 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.67 |

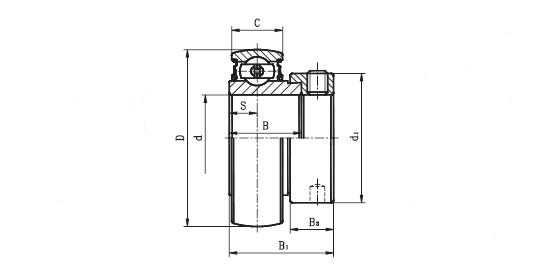

Schematic for 1245 1.3/4 EC ( SA 209 28 ) - Bearing Insert with a 1.3/4 inch bore - TR Brand | |
| B | 30.2mm |
| B1 | 43.7mm |
| B3 | 18.3mm |
| C | 19mm |
| D | 85mm |
| d1 | 63.5mm |
| h | 6.5mm |
| KG | 0.67 |
| S | 11mm |
