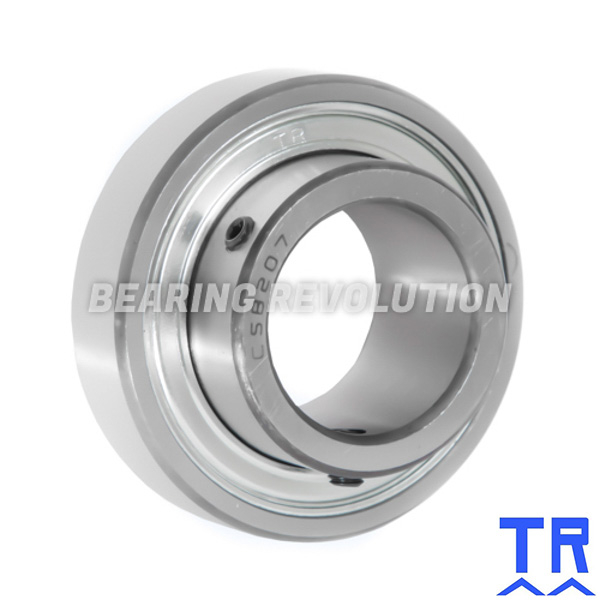

1325 1 ( CSB 205 16 ) - BEARING INSERT WITH A 1 INCH BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer complete with grub screws to allow tightening against the shaft, from our TR Range. 1" ID, 52mm OD, 27mm width.
- UnitsPer unit
- 1 - 4£10.29 (£12.35 inc VAT)
- 5 - 9£9.78 (£11.74 inc VAT)
- 10 +£9.26 (£11.11 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 1325 1 ( CSB 205 16 ) - Bearing Insert with a 1 inch bore - TR Brand | |
| Reference | 1325 1 |
| Brand | TR |
| Inside Diameter | 1" |
| Outside Diameter | 52mm |
| Width | 15mm |
| Dyn | 14000 |
| Stat | 7880 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.19 |

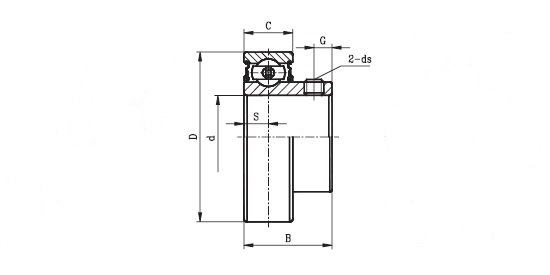

Schematic for 1325 1 ( CSB 205 16 ) - Bearing Insert with a 1 inch bore - TR Brand | |
| B | 27mm |
| C | 15mm |
| D | 52mm |
| ds | M6x1 |
| G | 5.5mm |
| h | 4.3mm |
| KG | 0.19 |
| S | 7.5mm |
