FPL 207 S/S N 6 GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 35 BORE - SELECT RANGE
Metric SF - UCF type Green Thermoplastic Square Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£94.36 (£113.23 inc VAT)
- 5 - 9£89.65 (£107.58 inc VAT)
- 10 +£84.93 (£101.92 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FPL 207 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 35 bore - Select Range | |
| Reference | FPL 207 S/S N 6 GRN |
| Brand | Select |
| Inside Diameter | 35mm |
| Bolt | M12 |
| Max Torque | 35Nm |
| Weight (KG) | 0.77 |

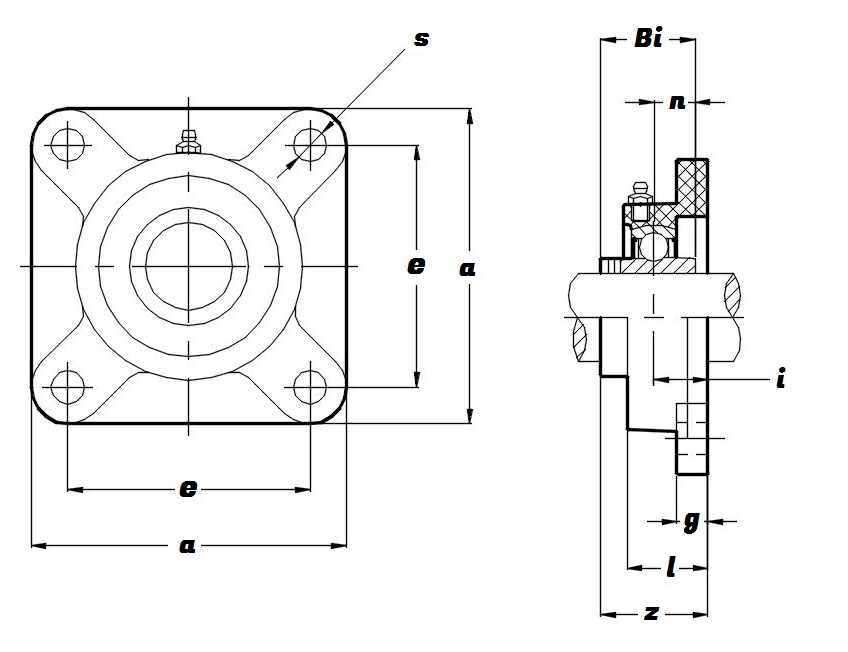

Schematic for FPL 207 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 35 bore - Select Range | |
| a | 118mm |
| Bi | 42.9mm |
| e | 92mm |
| g | 15.5mm |
| i | 21.5mm |
| KG | 0.77 |
| l | 34.8mm |
| n | 17.5mm |
| s | 13mm |
| z | 46.9mm |
