FBL 204 12 S/S N6A GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 3/4 INCH BORE - SELECT RANGE
Imperial UCFB type Green Thermoplastic Flange Bracket Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£87.75 (£105.30 inc VAT)
- 5 - 9£83.35 (£100.02 inc VAT)
- 10 +£78.96 (£94.75 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FBL 204 12 S/S N6A GRN, Green Thermoplastic Flange Bracket Unit with a 3/4 inch bore - Select Range | |
| Reference | FBL 204 12 S/S N6A GRN |
| Brand | Select |
| Inside Diameter | .3/4" |
| Bolt | M10 |
| Max Torque | 18Nm |
| Weight (KG) | 0.23 |

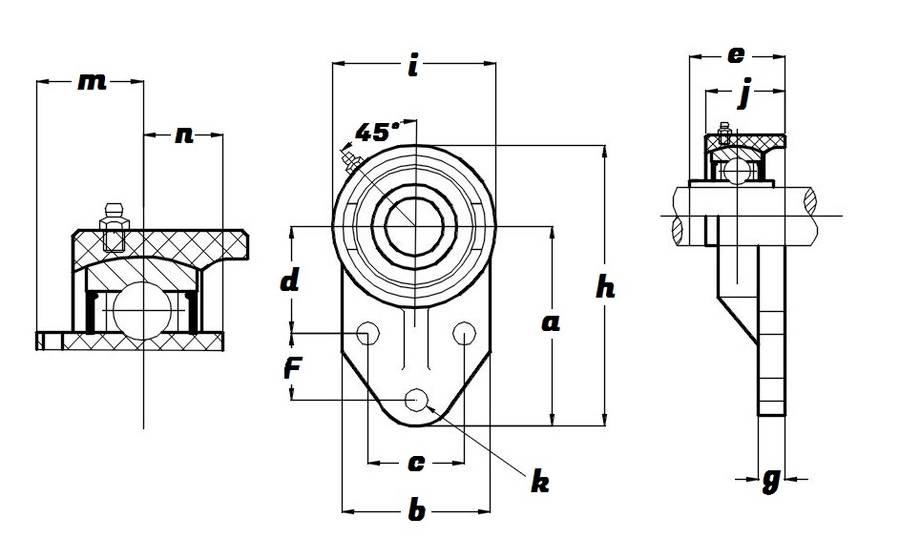

Schematic for FBL 204 12 S/S N6A GRN, Green Thermoplastic Flange Bracket Unit with a 3/4 inch bore - Select Range | |
| a | 76.2mm |
| b | 62mm |
| c | 38.1mm |
| d | 42.9mm |
| e | 33.7mm |
| f | 22.2mm |
| g | 11.4mm |
| h | 108mm |
| i | 63.5mm |
| j | 26.5mm |
| k | 10.7mm |
| KG | 0.23 |
| m | 18.3mm |
| n | 12.7mm |
